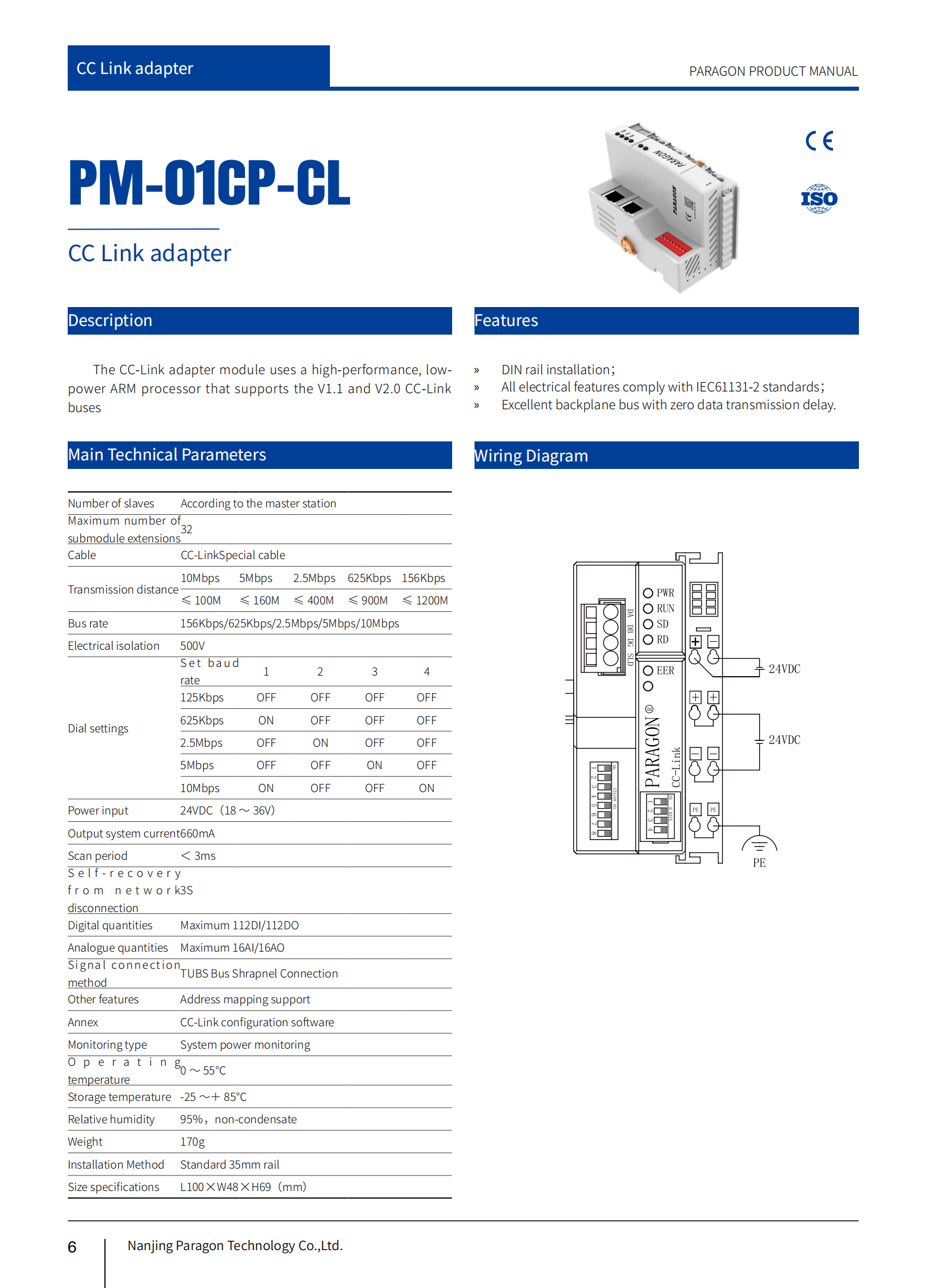

PM-01CP-CL CC-Link adapter

Classification:

PM series

The CC-Link adapter module uses a high-performance, low-power ARM processor that supports the V1.1 and V2.0 CC-Link buses

Communication mode:

Product Details Technical parameters Download

Total X Clear all

Contrast

General

Number of slave stations	Based on the master station
Maximum number of sub module extensions	32
Cable	CC Link dedicated cable
Distance	10Mbps	5Mbps	2.5Mbps	625Kbps	156Kbps
	≤100M	≤160M	≤400M	≤900M	≤1200M
Dialing settings	Set Baud Rate	1	2	3	4
	125Kbps	OFF	OFF	OFF	OFF
	625Kbps	ON	OFF	OFF	OFF
	2.5Mbps	OFF	ON	OFF	OFF
	5Mbps	OFF	OFF	ON	OFF
	10Mbps	ON	OFF	OFF	ON
Bus speed	156Kbps/625Kbps/2.5Mbps/5Mbps/10Mbps
Electrical isolation	500V
Scanning cycle	＜3ms
Network outage self recovery	3S
Connection method	TUBS bus shrapnel connection
Other features	Support address mapping
Monitoring type	System power monitoring
Output system current	660mA
Attachment	CC Link Configuration Software
Power supply parameters

Working power supply	24VDC(18～36)
Overall dimension

Length	100mm
Width	48mm
Height	69mm
Housing

Material	ABSflame retardant
Degree of protection	IP20
Flammability rating	UL94/V0
Colour	White
Operating conditions

Continuous operating temperature	0℃～550℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95% RH (no condensate)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Installation

Installation method	DIN35mm
