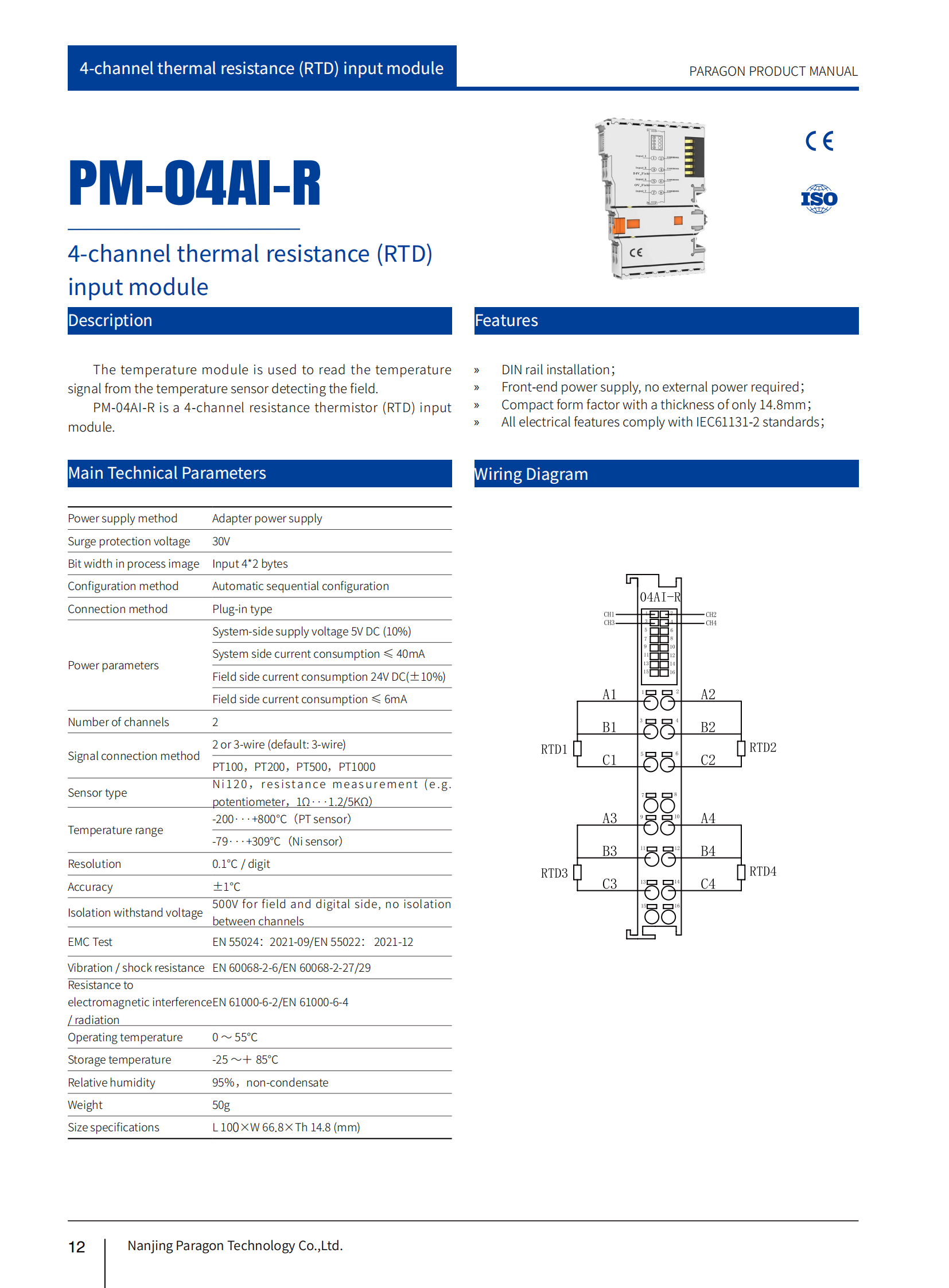

PM-04AI-R 4-channel thermal resistance (RTD)input module

Classification:

PM series

The temperature module is used to read the temperaturesignal from the temperature sensor detecting the field. PM-04AI-R is a 4-channel resistance thermistor (RTD) inputmodule.

Communication mode:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

essential parameter
Number of channels	4
Bitwidth in the process image	Enter 4 * 2 bytes
Configuration mode	Automatic configuration in sequential order
Mode of connection	Plug-in type
Temperature range	200 · · · 800℃ (PT sensor)
Temperature range	79 · · 309℃ (Ni sensor)
Range ability	0-65535
Resolution ratio	0.1℃ / digit
Accuracy	±1℃
Isolation and pressure resistance	Field side and digital side 500V, no isolation between channels
Seismic / impact resistance performance	EN 60068-2-6/EN 60068-2-27/29
Resistance to electromagnetic interference / radiation resistance	EN 61000-6-2/EN 61000-6-4
data-in
Incoming signal	hot resistance
source
Power supply mode	The adapter is powered
The surge protects the voltage	30V
Power parameters	System measuring power supply voltage 5V DC (± 10%) system measuring current consumption 260 mA
Power parameters	System measuring supply voltage 24V DC (± 10%) System current consumption 6 mA
Size
Length	100mm
Width	66.8mm
Altitude	14.8mm
Hull
Brand
Material	ABS inflaming retarding
Levels of protection	IP20
Fire retardant grade	UL94/V0
Pigment	white
Service environment
Continuous working temperature	0~55℃
Storage temperature	‘-25℃～＋85℃
Relative humidity	95% RH (no condensate)
Environmental requirements	The surrounding environment shall not have strong vibration, impact, large current and spark, and the air shall not contain the corrosive medium of chromium, nickel and silver coating, and shall not contain inflammable and explosive substances
Install
Way to install	DIN35mm Guide rail installation
