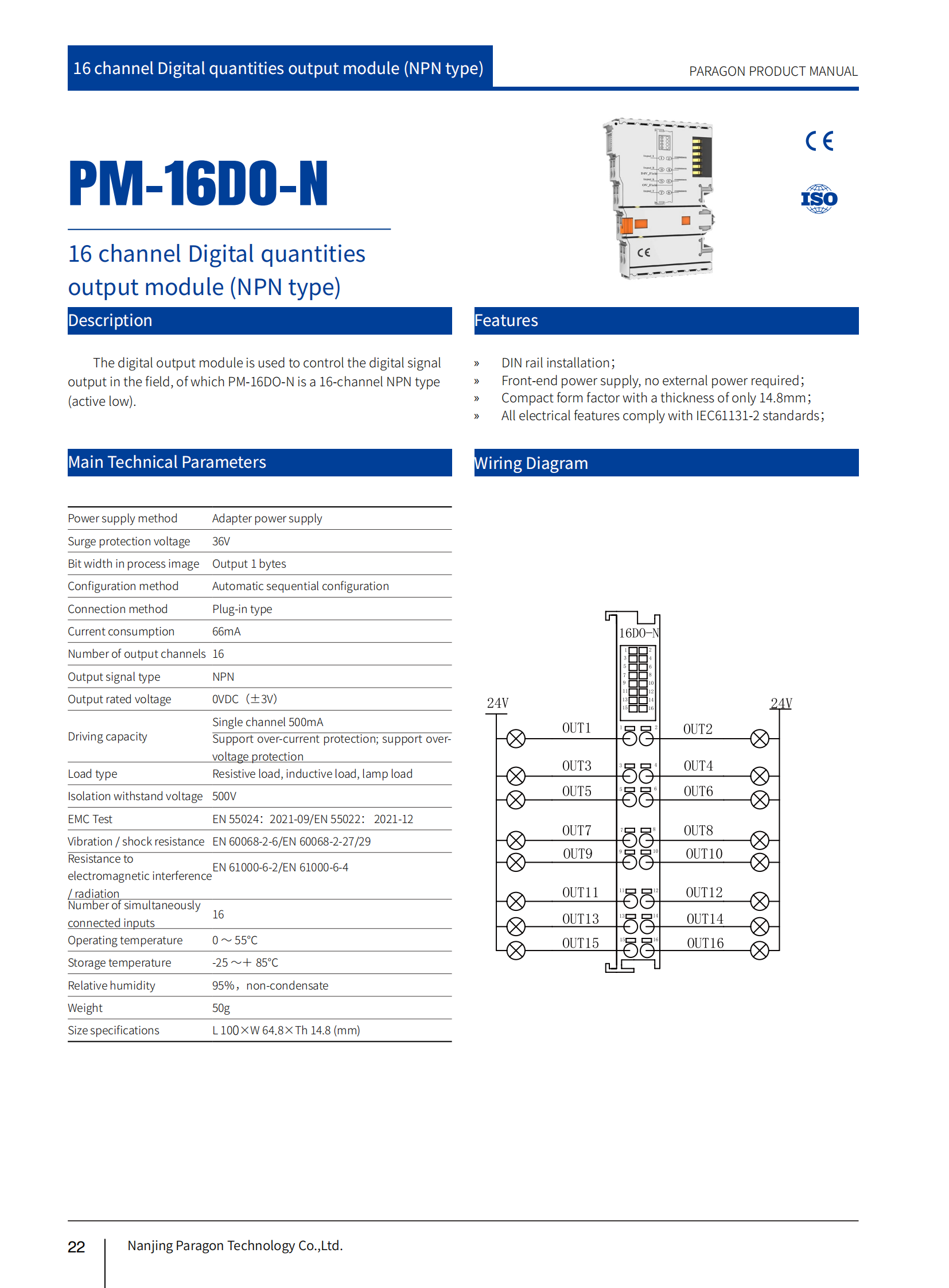

PM-16DO-N 16 channel Digital quantities output module (NPN type)

Classification:

PM series

The digital output module is used to control the digital signal output in the field, of which PM-16DO-N is a 16-channel NPN type (active low).

Communication mode:

Product Details Technical parameters Download

Total X Clear all

Contrast

Basic parameters
Bit width in process image	Output 2 bytes
Configuration method	Automatic configuration in sequence
Connection	Pluggable
Drive capability	Single channel 500mA
Drive capability	Support overcurrent protection; Support overvoltage protection
load type	Resistive load, inductive load, lamp load
Accuracy	0.001
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500V on site and digital sides, no isolation between channels
Cable Length	Unshielded 100m
Seismic/impact resistance performance	EN 60068-2-6/EN 60068-2-27/29
Anti electromagnetic interference/radiation performance	EN 61000-6-2/EN 61000-6-4
Current consumption	66mA
Number of outputs simultaneously connected	16
Output data
Output rated voltage	24VDC（±20%）
Number of output channels	16
Output signal type	NPN
Power supply
Power supply mode	Adapter power supply
Surge protection voltage	36V
Size
Length	100mm
Width	64.8mm
Height	14.8mm
Housing
Material	ABS flame retardant
Protection grade	IP20
Flame retardant grade	UL94/V0
Colour	White
Usage environment
Continuous operating temperature	0~55℃
Storage temperature	25℃～＋85℃
Relative humidity	95% RH (No condensed water)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Install
Installation method	DIN35mm guide rail installation
