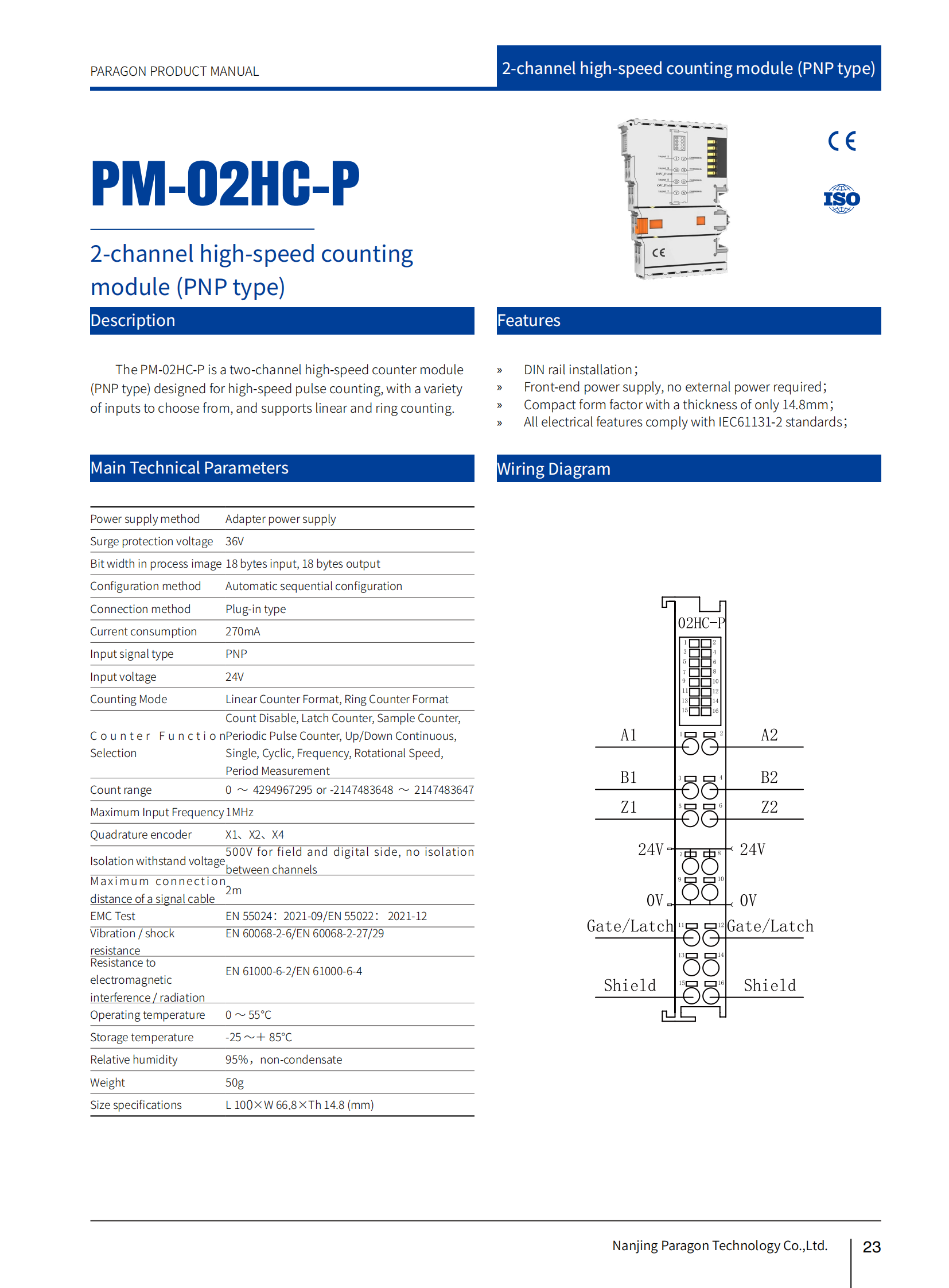

PM-02HC-P 2-channel high-speed counting module (PNP type)

Classification:

PM series

The PM-02HC-P is a two-channel high-speed counter module (PNP type) designed for high-speed pulse counting, with a variety of inputs to choose from, and supports linear and ring counting.

Communication mode:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Basic parameters
Bit width in process image	Output 18 bytes; Input 18 bytes
Configuration method	Automatic configuration in sequence
Connection	Pluggable
Count mode	Linear counter form, circular counter form
Counter function selection	Counting disabled, latch counter, sampling counter, cycle pulse counter, continuous up/down, single, cycle counting, frequency, rotation speed, cycle measurement
Counting range	0～4294967295 or -2147483648～2147483647
Maximum input frequency	1MHz
Quadrature encoder	X1、X2、X4
Maximum connection distance of signal line	2 m
Isolation and withstand voltage	500V on site and digital sides, no isolation between channels
Seismic/impact resistance performance	EN 60068-2-6/EN 60068-2-27/29
Anti electromagnetic interference/radiation performance	EN 61000-6-2/EN 61000-6-4
Current consumption	270mA
Data in
Number of input channels	2
INPUT VOLTAGE	24V
Input Signal Type	PNP
Power supply
Power supply mode	Adapter power supply
Surge protection voltage	36V
Size
Length	100mm
Width	66.8mm
Height	14.8mm
Housing
Material	ABS flame retardant
Protection grade	IP20
Flame retardant grade	UL94/V0
Colour	White
Usage environment
Continuous operating temperature	0~55℃
Storage temperature	-25℃～＋85℃
Relative humidity	95% RH (No condensed water)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Install
Installation method	DIN35mm guide rail installation
