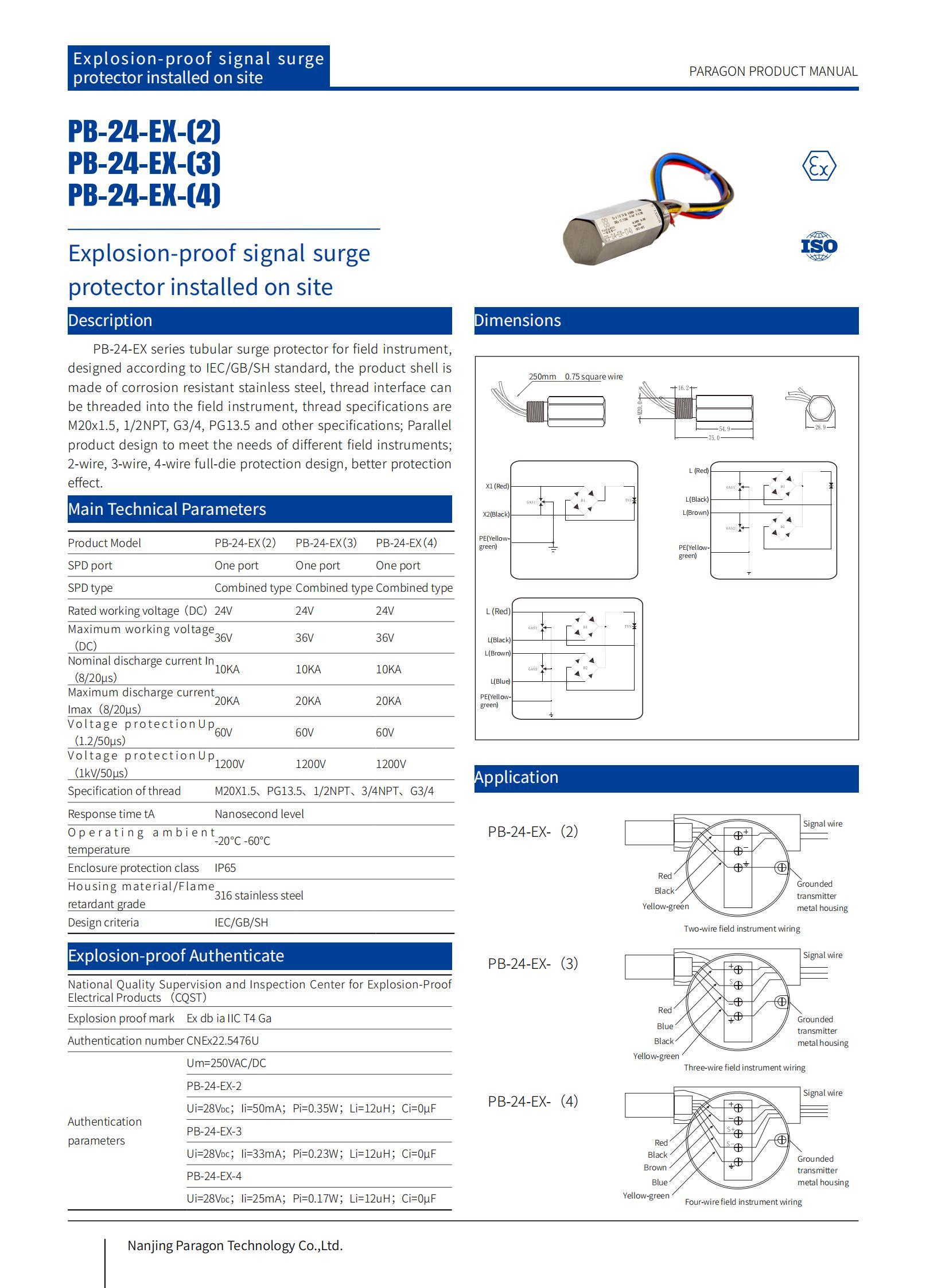

PB-24-EX-(3) Install explosion-proof signal surge protector on site

Classification:

PB-EX series

● Tubular surge protector ● Designed according to IEC/GB/SH standards, corrosion-resistant stainless steel casing ● Thread specification M20 × 1.5, 1/2NPT, G3/4, PG13.5, etc ● 2 wire, 3 wire, and 4 wire full mode protection design

Wire system:

Nominal discharge current In:

10kA

Applicable voltage:

Connection mode:

Screw connection

Explosion proof:

Intrinsic safety

Remote signaling function:

not have

Applicable distribution system:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Basic parameters
SPD Port	One port
SPD type	Combination type
Rated operational voltage Un(AC)	24V
Maximum working voltage Uc(DC)	36V
Nominal discharge current IN(8/20us)	10KA
Maximum discharge current Imax(8/20us)	20KA
Voltage protection level UP(1.2/50us）	60V
Voltage protection level UP（1KV/50us)	1200V
Response time tA	Nanosecond level
Size
Length	100mm
Width	28.9mm
Housing
Material	316 stainless steel
Thread specification	M20X1.5,PG13.5,1/2NPT,3/4NPT,G3/4
Colour	Silver
Protection grade	IP67
Flame retardant grade	V0
Standards/Procedures
Design standards	IEC/GB/SH
Usage environment
Continuous operating temperature	-20℃~+60℃
Storage temperature	-40℃~+80℃
Relative humidity	10%~90%
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Install
Installation method	Threaded interface
