PBD-6-EX-2 Instrument industrial control surge protector (single channel)

Classification:

PB-EX series

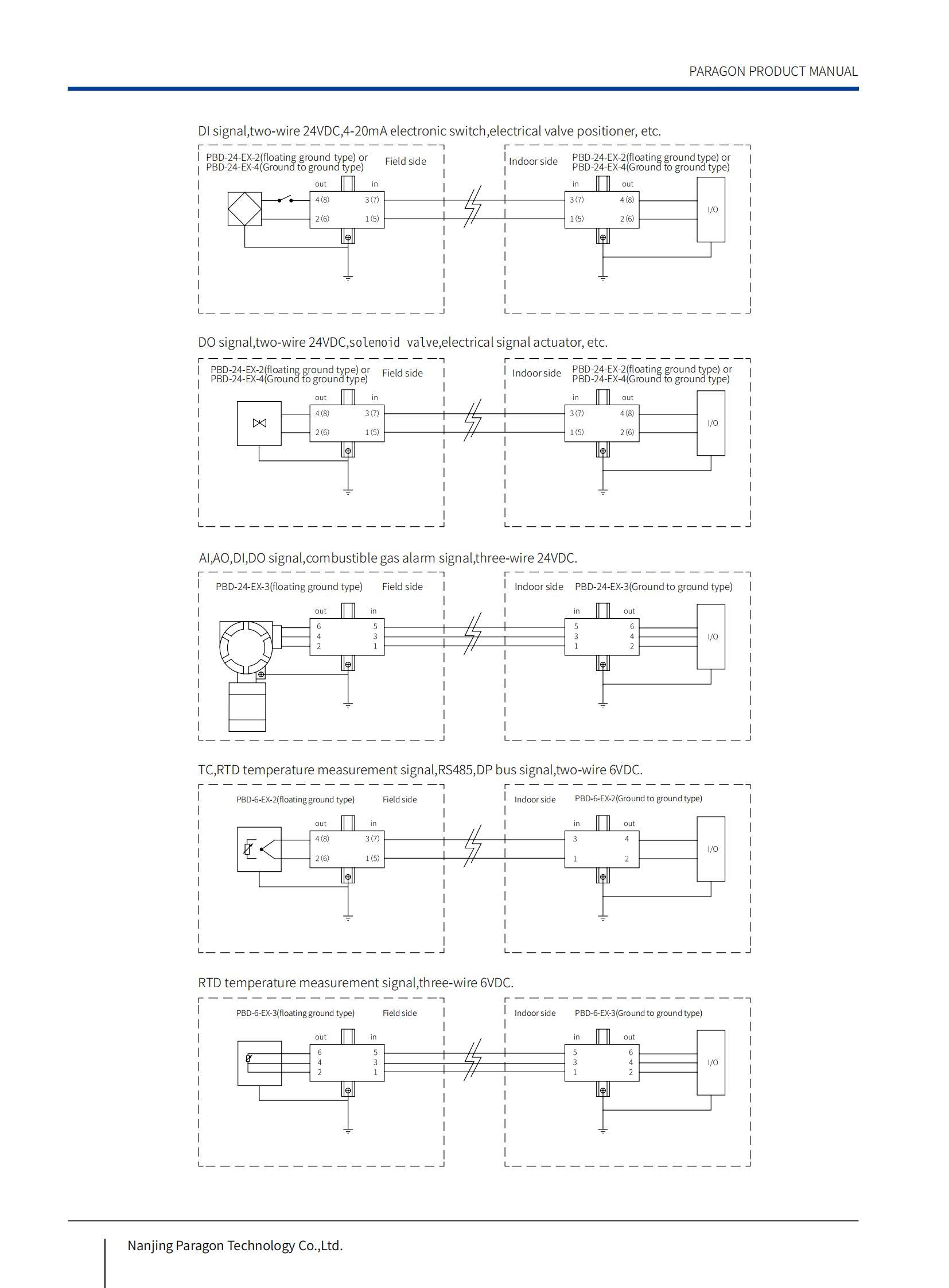

● Modular instrument industrial control surge protector ● Grounding integrated into DIN rail design ● 2- and 3-wire full mode protection design ● Applicable to I/O modules, switch quantity, pulse quantity signal lines ● RTD/TC temperature measurement signal circuit: bus communication signal circuit

Wire system:

Nominal discharge current In:

Applicable voltage:

Connection mode:

Push-in connection

Explosion proof:

Intrinsic safety

Remote signaling function:

Applicable distribution system:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Basic parameters
Number of protective lines	2-wire/3-wire
SPD Port	two-port
SPD type	Combination type
Rated operational voltage Un(AC)	6V
Maximum working voltage Uc(DC)	8V
Maximum operating current Ic（DC)	600mA
C2 line - PG nominal discharge current In(8/20us)	10KA
C2 line - PG maximum discharge current Imax(8/20us)	20KA
Line PG impulse amplification current Iimp(10/350us）	3KA
Line to line voltage protection level UP(1.2/50us）	25V
Line PG voltage protection level UP(1.2/50us）	25V
Line PG voltage protection level UP(C2）	250V
Line to line voltage protection level UP(1KV/usC3）	25V
Line PG voltage protection level UP(1KV/usC3）	25V
Series impedance	1.8Ω
Grounding method	Direct grounding, series discharge tube grounding
Isolation voltage to ground	0V/500V
Size
Length	109mm
Width	65mm
Height	12mm
Housing
Material	ABS flame retardant
Colour	Black
Protection grade	IP20
Flame retardant grade	V0
Standards/Procedures
Explosion proof sign	IEC/GB/SH
Certification number	CNEx22.5475U
National Quality Supervision and Inspection Center for Explosion proof Electrical Products
Usage environment
Continuous operating temperature	-20℃~+60℃
Storage temperature	-40℃~+80℃
Relative humidity	10%~90%
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Install
Installation method	Threaded interface
