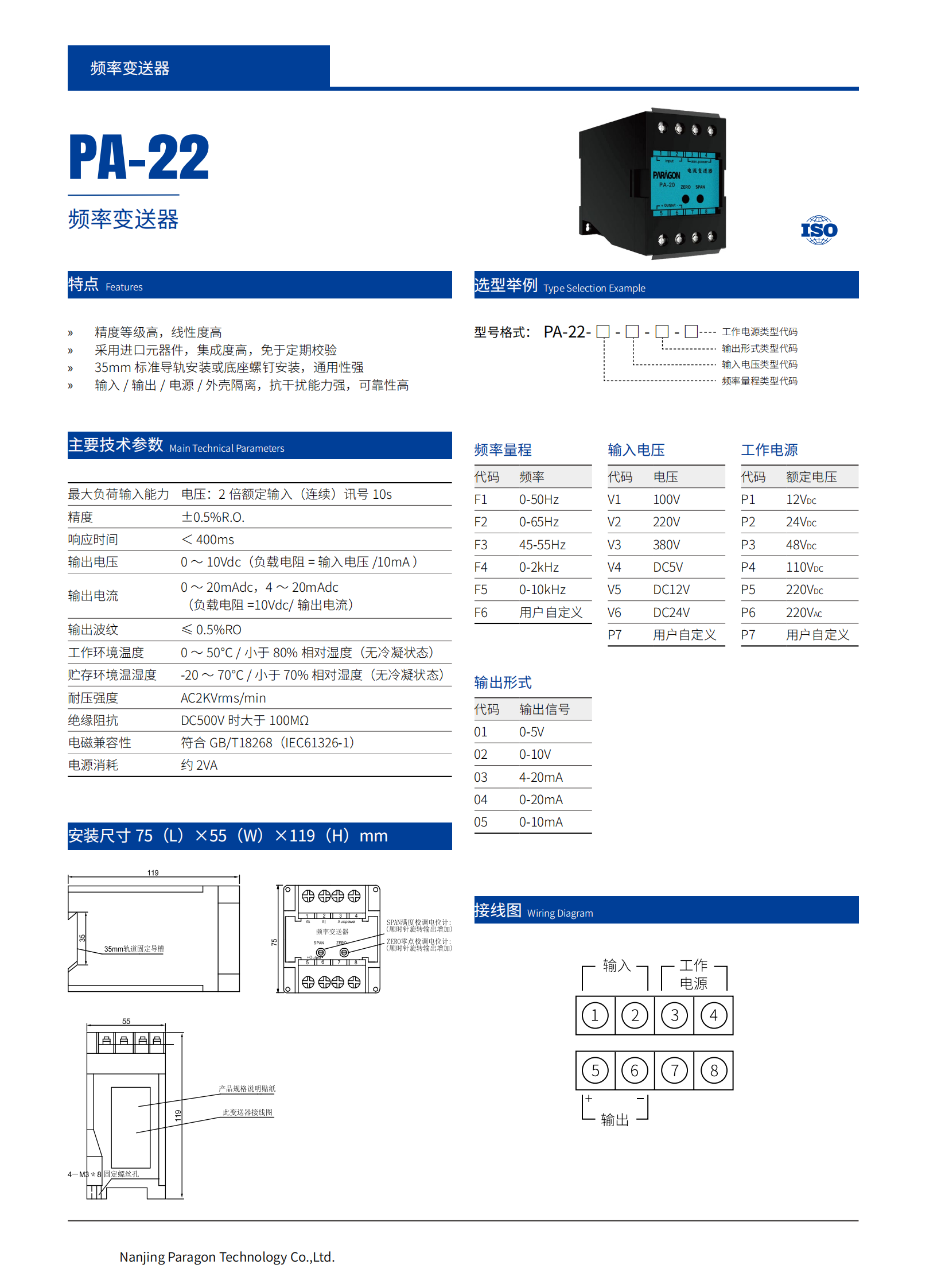

PA-22 MCZ Frequency

Picture Name

Classification:

PA series

● High precision grade, high linearity ● The use of imported components, high integration, free from r egular verification ● 35mm standard rail installation or base screw installation, stro ng versatility; ● Input/output/power supply/housing isolation, strong anti-interference ability, high reliability.

Number of channels:

single phase

Input:

0-50Hz,0-65Hz,45-55Hz,0-2KHz,0-10KHz,User defined

Output:

0~5V,0~10V,1~5V,0~20mA,4~20mA,0~10mA,User defined

Power supply mode:

12Vdc,24Vdc,48Vdc,110Vdc,220Vdc,220Vac,用户自定义

Product Details Technical parameters Download

Close
  • 产品对比
Total X Clear all

Contrast

General
Number of channels 1 input/1 output
Output accuracy (20 ° C) ±0.5%
Response time <400ms
Insulation strength 1500V AC/1min,2mA
Insulation resistance Above 100M Ω at 500VDC
Electromagnetic compatibility Compliant with GB/T18268 (IEC61326-1)
Weight About 70g
Connected field equipment Frequency signal
Overload capacity Voltage: can withstand twice the rated value (continuous) signal for 10s
Power consumption About 2.5VA
Input data
Input signal 100V,220V,380V,DC5V,DC12V,DC24V
Output data
Output signal Output current: 0~20mAdc, 4~20mAdc
(Load resistance=10Vdc/output current); Output voltage: 0~10Vdc
(Load resistance=input voltage/10mAdc)
Output ripple ≤0.5%RO
Overall dimension
Depth 119mm
Height 75mm
Width 55mm
Housing
Material ABS flame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour Black
EMC data
Electrical fast transient/burst immunity Compliant with:IEC 61326-1;A-leve
Surge (impact) immunity Compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity Compliant with:IEC 61326-1;conform to basic requirements
Electrostatic discharge immunity Compliant with:IEC 61326-1;A-leve
Immunity to conducted disturbances, induced by radio-frequency fields Compliant with:IEC 61326-1;conform to basic requirements
Low frequency common mode conduction Compliant with:IEC 61326-1;conform to basic requirements
Operating conditions
Operating temperature 0~50 ℃/less than 80% relative humidity (non condensing state)
Storage temperature ﹣20℃~+70℃/less than 70% relative humidity (non condensing state)
Relative humidity < 90% RH(no condensate)
Environmental requirements There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection data
Conductor cross section solid range 0.52.5mm²
Conductor cross section AWG min 12
Conductor cross section AWG max 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Installation method DIN35mm
