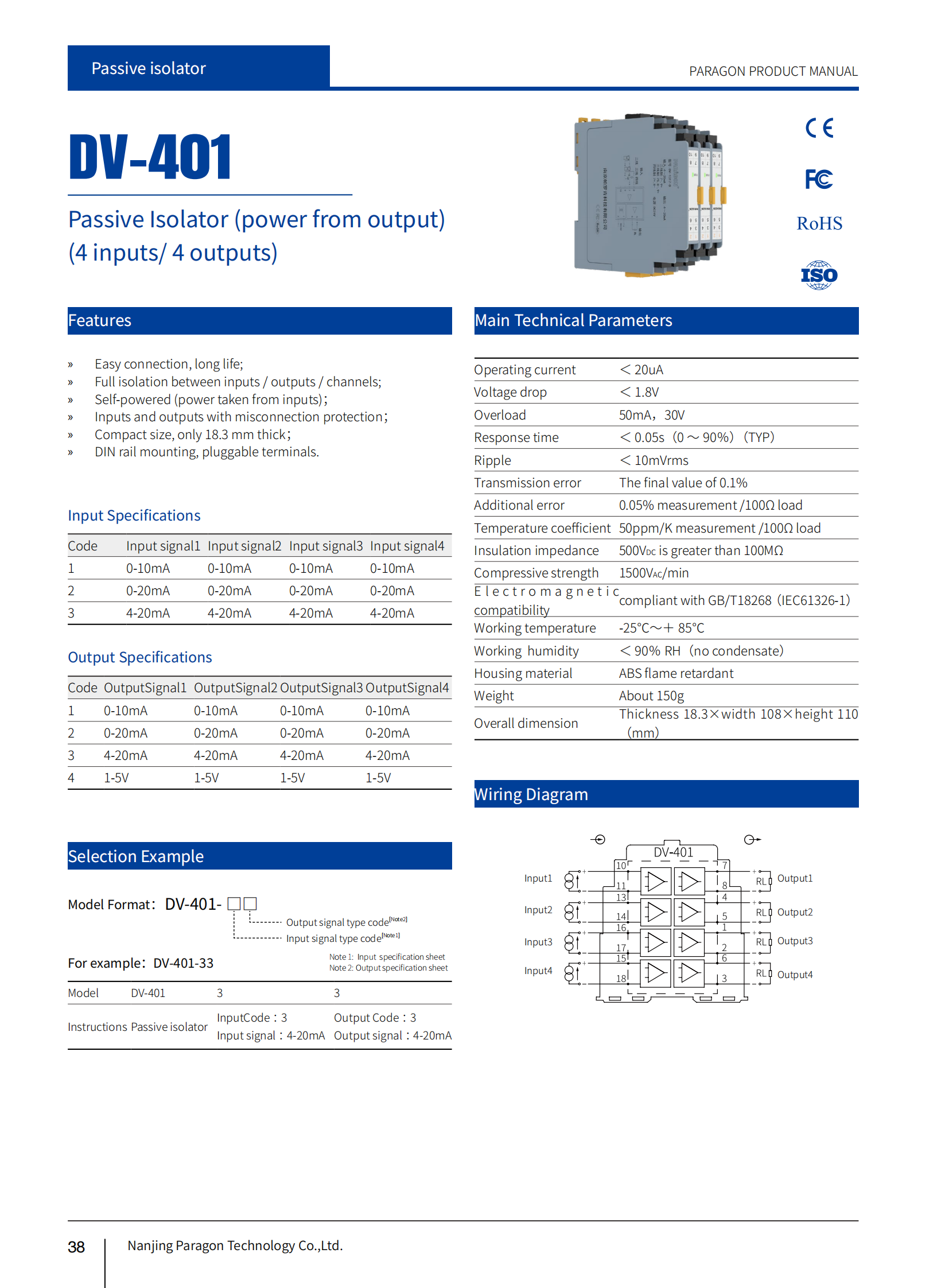

DV-401 Passive Isolator (power from output) (4 inputs/ 4 outputs)

Picture Name

Classification:

Terminal power supply series

● Easy connection, long life; ● Full isolation between inputs / outputs / channels; ● Self-powered (power taken from inputs); ● Inputs and outputs with misconnection protection; ● Compact size, only 18.3 mm thick; ● DIN rail mounting, pluggable terminals.

Number of channels:

4inputs/4outputs

Input:

0~10mA,0-20mA,4~20mA,User-specific parameters

Power distribution:

Output:

0~20mA,1-5V,4~20mA,User-specific parameters

Power supply mode:

Click to consult
Add to comparison
Product inquiry
Product Details Technical parameters Technology and Installation Download
