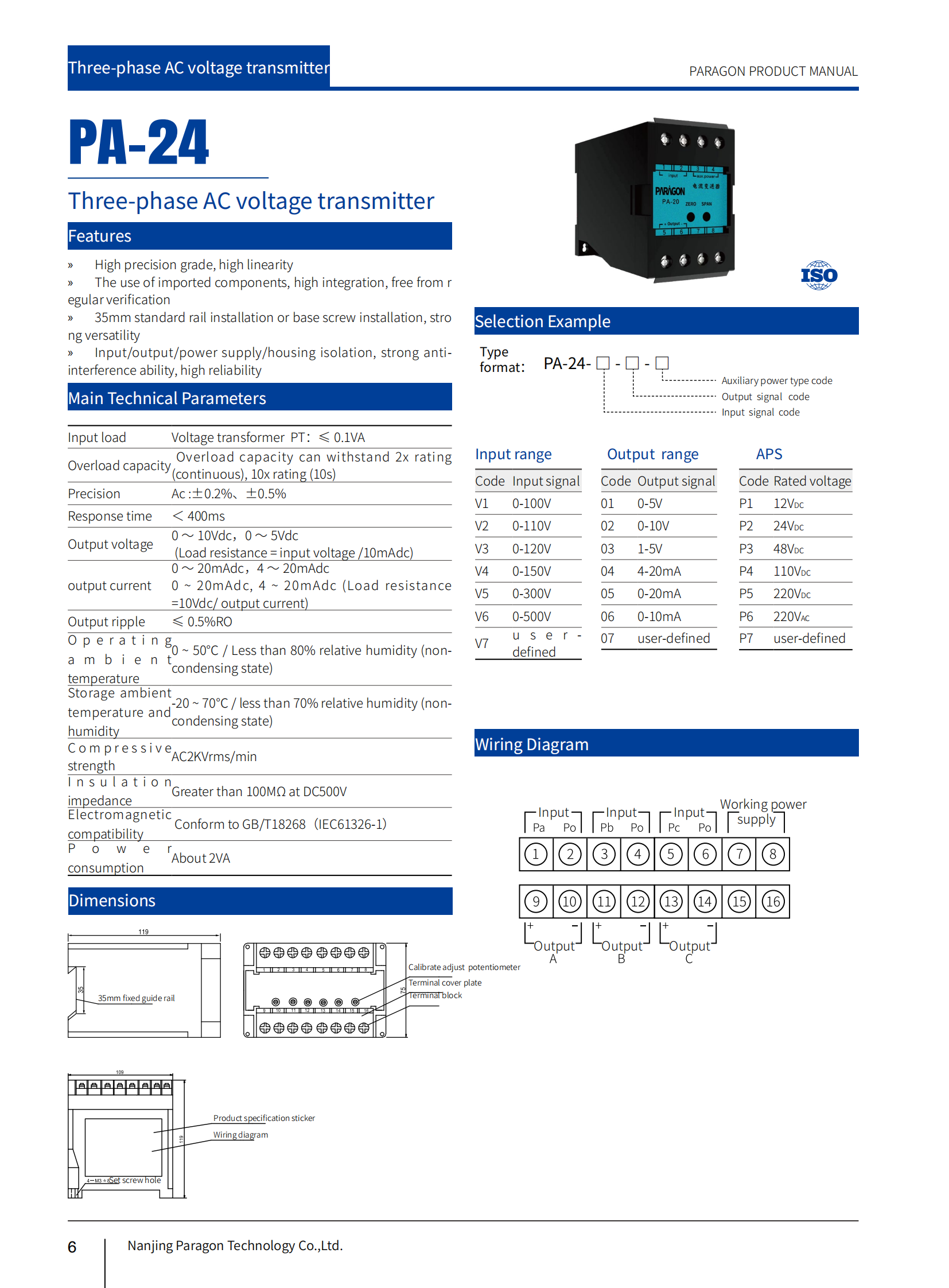

PA-24 Three-phase AC voltage transmitter

Classification:

PA series

● High precision grade, high linearity; ● The use of imported components, high integration, free from r egular verification; ● 35mm standard rail installation or base screw installation, stro ng versatility; ● Input/output/power supply/housing isolation, strong anti-interference ability, high reliability.

Number of channels:

three phase

Input:

0-100Vac,0-110Vac,0-120Vac,0-150Vac,User defined

Output:

0~5V,0~10V,1~5V,0~20mA,4~20mA,0~10mA,User defined

Power supply mode:

用户自定义,220Vac,220Vdc,110Vdc,48Vdc,24Vdc,12Vdc

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

General
General
Number of channels	3 inputs/3 outputs
Output accuracy (20 ° C)	AC: ± 0.2%, ± 0.5%
Response time	＜400ms
Insulation strength	1500V AC/1min,2mA
Insulation resistance	Above 100M Ω at 500VDC
Electromagnetic compatibility	Compliant with GB/T18268 (IEC61326-1)
Weight	About 100g
Connected field equipment	Current source
Overload capacity	Can withstand 2 times the rated value (continuous), 10 times the rated value (10s)
Power consumption	About 2VA
Input data
Input data
Input signal	0～10A
Input load	Voltage transformer PT: ≤ 0.1VA
Output data
Output data
Output signal	Output current: 0 ～ 20mAdc，4 ～ 20mAdc
	(Load resistance=10Vdc/output current); Output voltage: 0～10Vdc
	(Load resistance=input voltage/10mAdc)
Output ripple	≤0.5%RO
Overall dimension
Overall dimension
Length	109mm
Height	119mm
Width	75mm
Housing
Housing
Material	ABS flame retardant
Degree of protection	IP20
Flammability rating	UL94/V0
Colour	Black
EMC data
EMC data
Electrical fast transient/burst immunity	Compliant with:IEC 61326-1;A-leve
Surge (impact) immunity	Compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity	Compliant with:IEC 61326-1;conform to basic requirements
Electrostatic discharge immunity	Compliant with:IEC 61326-1;A-leve
Immunity to conducted disturbances, induced by radio-frequency fields	Compliant with:IEC 61326-1;conform to basic requirements
Low frequency common mode conduction	Compliant with:IEC 61326-1;conform to basic requirements
Operating conditions
Operating conditions
Operating temperature	0～50 ℃/less than 80% relative humidity (non condensing state)
Storage temperature	﹣20℃～＋70℃/less than 70% relative humidity (non condensing state)
Relative humidity	＜ 90% RH(no condensate)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection data
Connection data
Conductor cross section solid range	0.5～2.5mm²
Conductor cross section AWG min	12
Conductor cross section AWG max	24
Stripping length	8mm
Screw thread	M3
Connection method	Screw connection
Tightening torque min.	0.5 Nm
Tightening torque max.	0.6 Nm
Installation
Installation
Installation method	DIN35mm
