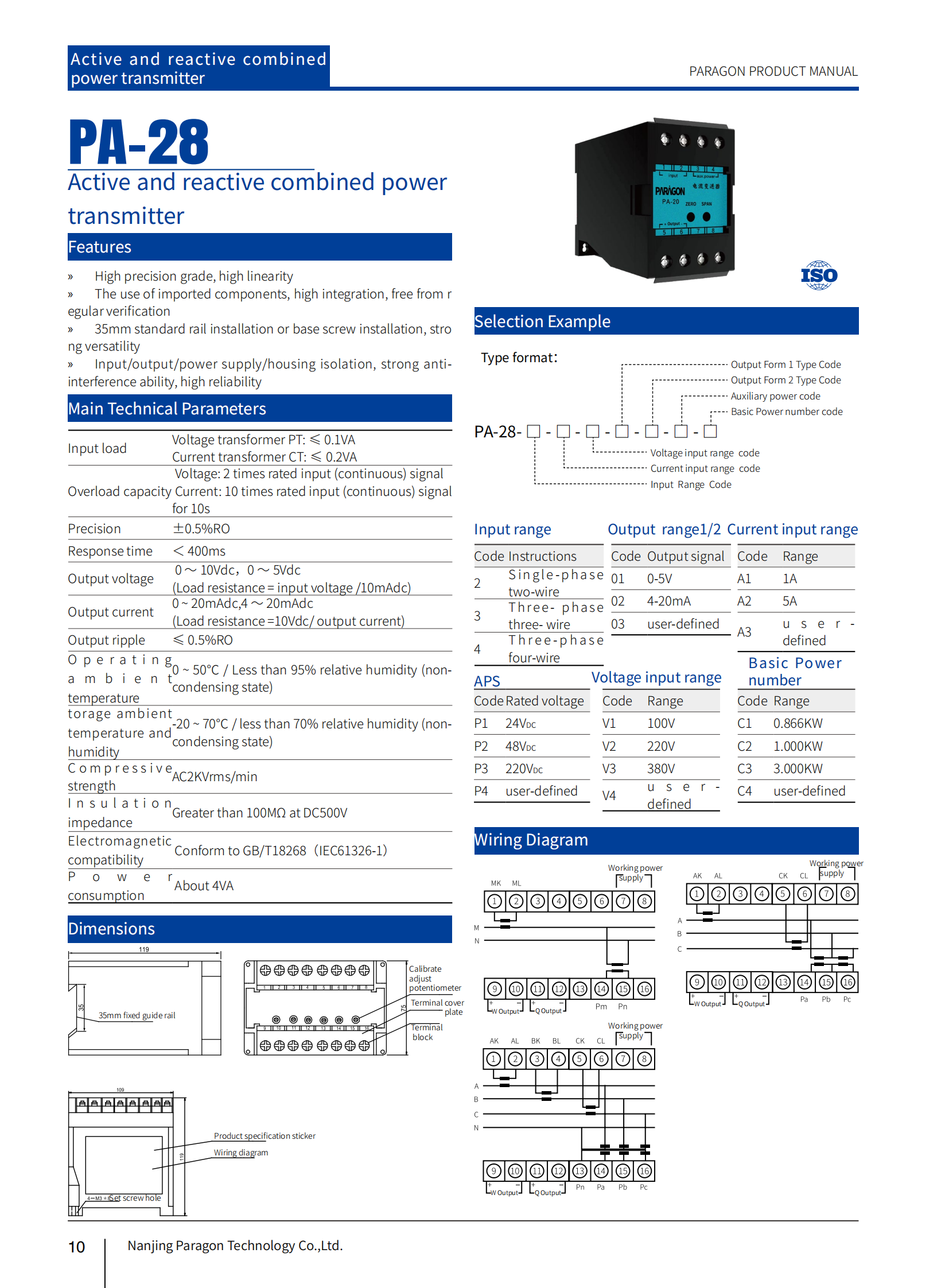

PA-28 Active and reactive combined power transmitter

Picture Name


PA series

PA series

● High precision grade, high linearity; ● The use of imported components, high integration, free from r egular verification; ● 35mm standard rail installation or base screw installation, stro ng versatility; ● Input/output/power supply/housing isolation, strong anti-interference ability, high reliability.

Number of channels:

Single phase two wire,Three phase three wire,Three phase four wire


0-1Aac,0-5Aac,0-100Vac,0-150Vac,0-300Vac,User defined


0~5V,4~20mA,User defined

Power supply mode:


Product Details Technical parameters Download

  • 产品对比
Total X Clear all


Output accuracy (20 ° C) ± 0.5%
Response time <400ms
Insulation strength 1500V AC/1min,2mA
Insulation resistance Above 100M Ω at 500VDC
Electromagnetic compatibility Compliant with GB/T18268 (IEC61326-1)
Weight About 200g
Connected field equipment Current source
Overload capacity Can withstand 2 times the rated value (continuous), 10 times the rated value (10s)
Power consumption About 4VA
Input data
Input signal 1A;5A;100V,220V,380V
Input load Voltage transformer PT: ≤ 0.1VA
Current transformer CT: ≤ 0.2VA
Output data
Output signal Output current: 0~20mAdc,4~20mAdc
(Load resistance=10Vdc/output current);
Output voltage: 0 ~ 10Vdc,0 ~ 5Vdc
(Load resistance=input voltage/10mAdc)
Output ripple ≤0.5%RO
Overall dimension
Length 109mm
Height 119mm
Width 75mm
Material ABS flame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour Black
EMC data
Electrical fast transient/burst immunity Compliant with:IEC 61326-1;A-leve
Surge (impact) immunity Compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity Compliant with:IEC 61326-1;conform to basic requirements
Electrostatic discharge immunity Compliant with:IEC 61326-1;A-leve
Immunity to conducted disturbances, induced by radio-frequency fields Compliant with:IEC 61326-1;conform to basic requirements
Low frequency common mode conduction Compliant with:IEC 61326-1;conform to basic requirements
Operating conditions
Operating temperature 0~50 ℃/less than 80% relative humidity (non condensing state)
Storage temperature ﹣20℃~+70℃/less than 70% relative humidity (non condensing state)
Relative humidity < 90% RH(no condensate)
Environmental requirements There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection data
Conductor cross section solid range 0.52.5mm²
Conductor cross section AWG min 12
Conductor cross section AWG max 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation method DIN35mm
