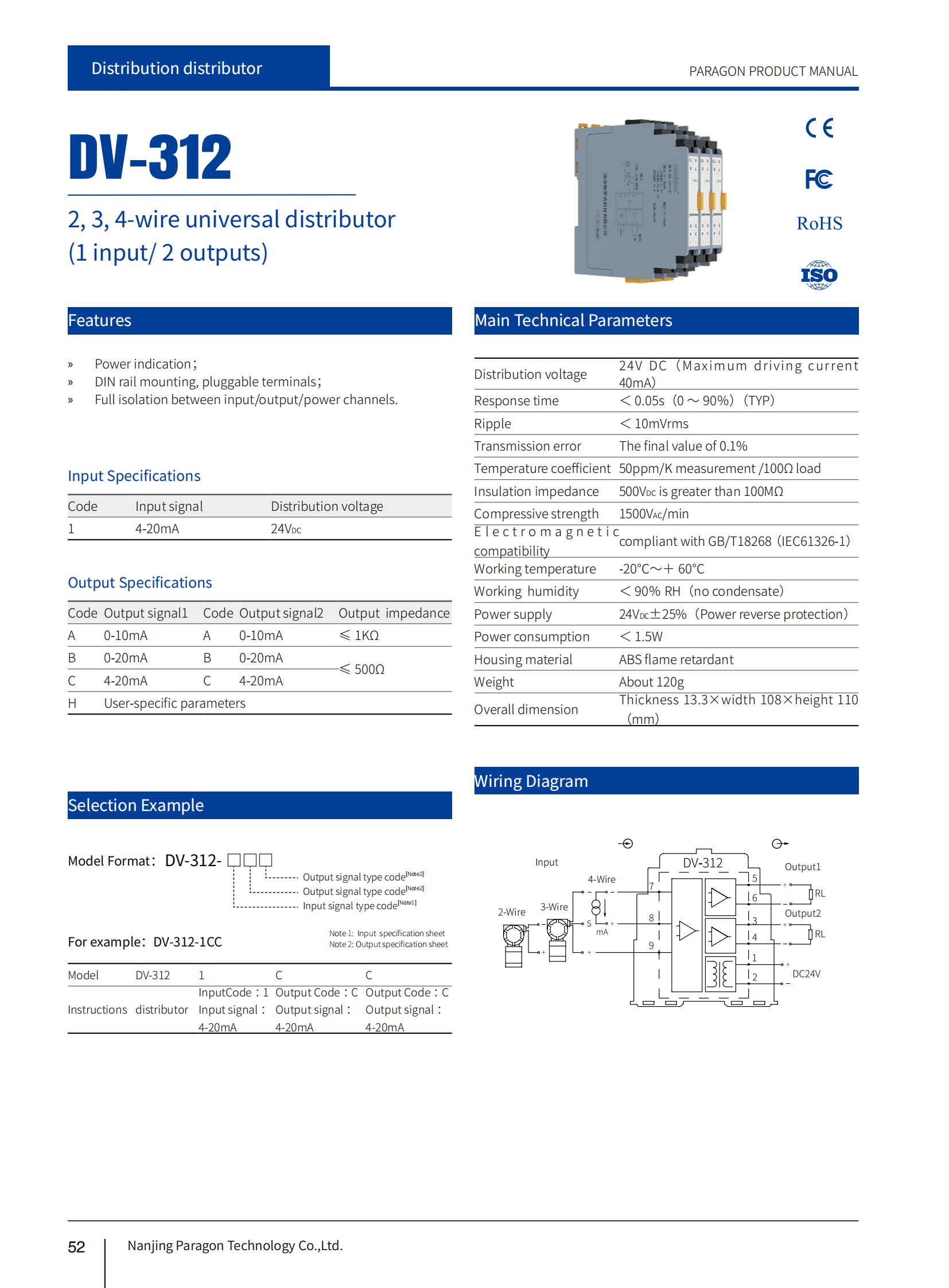

DV-312 2, 3, 4-wire universal distributor (1 input/ 2 outputs)

Picture Name

Classification:

Terminal power supply series

● Power indication; ● DIN rail mounting, pluggable terminals; ● Full isolation between input/output/power channels.

Number of channels:

1input/2outputs

Input:

4~20mA

Power distribution:

≥19V/20mA

Output:

0~20mA,4~20mA,User-specific parameters,0/4~20mA(passive),4-20mA（load≤500Ω）

Power supply mode:

24VDC

Click to consult
Add to comparison
Product inquiry
Product Details Technical parameters Technology and Installation Download

Close
  • 产品对比
Total X Clear all

Contrast

General
Number of channels 1input/2outputs
Output accuracy (20 ° C) 0.1% F.S.
Temperature drift 50ppm/K
Response time ＜0.05s (0～90%) (TYP)
Insulation strength 1500V AC/1min,2mA
Insulation resistance Above 100M Ω at 500VDC
Electromagnetic compatibility Compliant with GB/T18268 (IEC61326-1)
Weight About 120g
Connected field equipment Two wire transmitter; Three wire transmitter; Current source
Input data
Input signal 4～20mA
Input impedance 24VDC (maximum driving current 40mA)
Output data
Output signal 0～20mA
Output impedance ≤500Ω
Output Load 0～350Ω
Power supply
Supply voltage(Ue) 24VDC±25%
Power protection Reverse protection of power supply
Power consumption ＜1.5W
Power supply mode Independent power supply
Power connecting mode Terminal power supply
Overall dimension
Depth 110mm
Height 108mm
Width 13.3mm
Housing
Material PC+ABSflame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour Grey
EMC data
Electrical fast transient/burst immunity Compliant with:IEC 61326-1;A-leve
Surge immunity Compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity Compliant with:IEC 61326-1;conform to basic requirements
Electrostatic discharge immunity Compliant with:IEC 61326-1;A-leve
Immunity to conducted disturbances, induced by radio-frequency fields Compliant with:IEC 61326-1;conform to basic requirements
Low frequency common mode conduction Compliant with:IEC 61326-1;conform to basic requirements
Operating conditions
Continuous operating temperature ﹣20℃～﹢60℃
Storage temperature ﹣40℃～＋80℃
Relative humidity ＜ 90% RH(no condensate)
Environmental requirements There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection data
Conductor cross section solid range 0.5～2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min. 0.5 Nm
Tightening torque max. 0.6 Nm
Installation
Installation method DIN35mm
