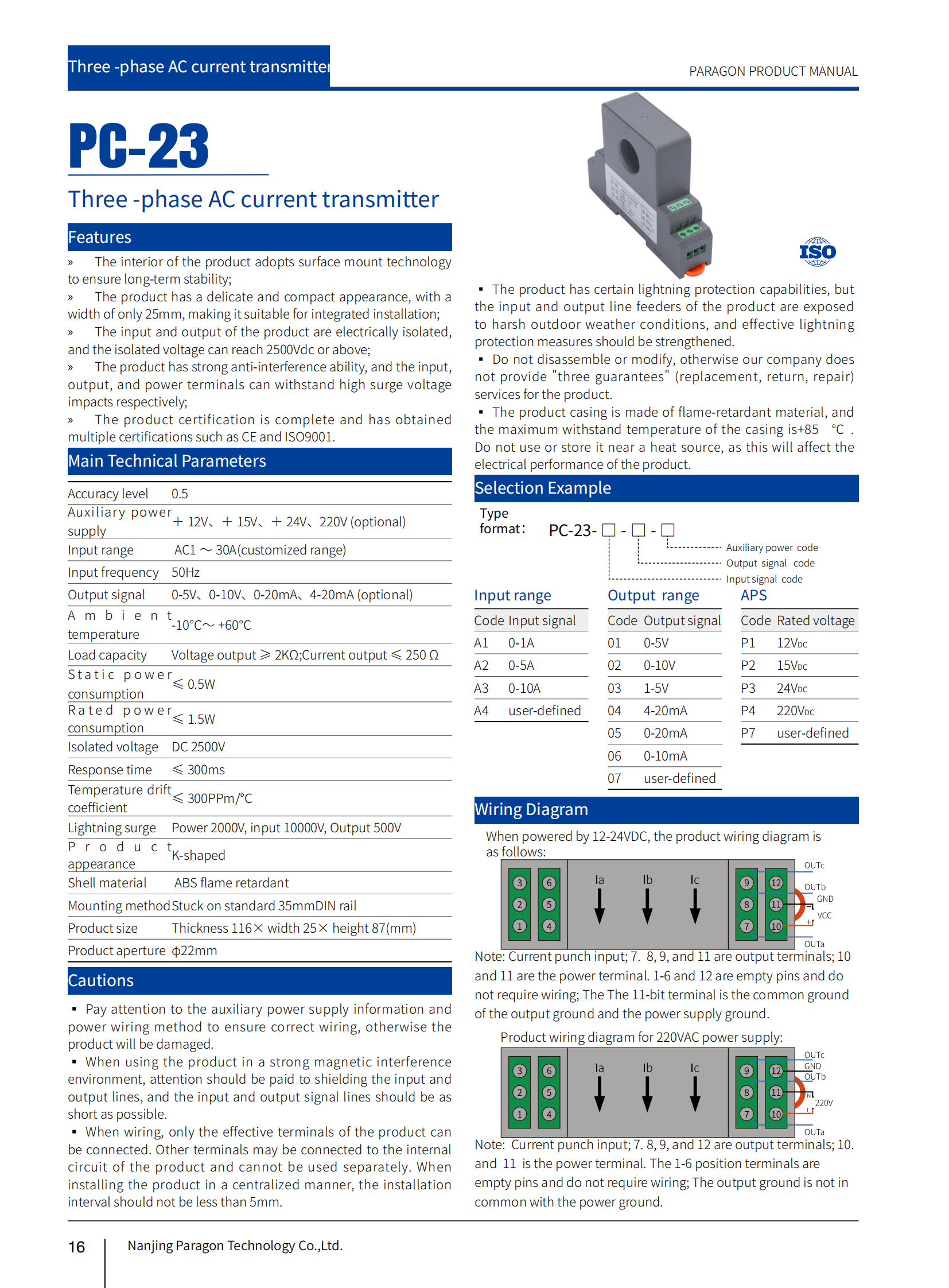

PC-23 Three-phase AC current transmitter

Classification:

PC series

● The interior of the product adopts surface mount technology to ensure long-term stability; ● The product has a delicate and compact appearance, with a width of only 25mm, making it suitable for integrated installation; ● The input and output of the product are electrically isolated, and the isolated voltage can reach 2500Vdc or above; ● The product has strong anti-interference ability, and the input, output, and power terminals can withstand high surge voltage impacts respectively; ● The product certification is complete and has obtained multiple certifications such as CE and IS09001.

Number of channels:

three phase

Input:

0-5Aac,User defined,0-30Aac,0-100Aac

Output:

0~5V,0~10V,1~5V,0~20mA,4~20mA,0~10mA,User defined

Power supply mode:

12Vdc,24Vdc,220Vac,用户自定义,110Vdc,220Vdc

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

General
General
Output accuracy (20 ° C)	0.5
Response time	≤300ms
Insulation strength	1500V AC/1min,2mA
Insulation resistance	Above 100M Ω at 500VDC
Electromagnetic compatibility	Compliant with GB/T18268 (IEC61326-1)
Weight	About 150g
Auxiliary power supply	﹢12Vdc、﹢15Vdc、﹢24Vdc、220Vac/dc
Load capacity	Voltage output ≥ 2K Ω, current output ≤ 250 Ω
Static power consumption	≤0.5W
Rated power consumption	≤1.0W
Isolation and withstand voltage	DC2500V
Temperature coefficient	≤300ppm/℃
Lightning surge	Power supply 2000V, output 500V
Input data
Input data
Input signal	AC0～150A
Input frequency	50Hz
Output data
Output data
Output signal	0～5V,0～10V,0～20mA,4～20mA(optional)
Overall dimension
Overall dimension
Depth	110mm 110mm
Height	82mm 82mm
Width	28mm 28mm
Product aperture	∅6mm ∅11mm
Housing
Housing
Material	ABS flame retardant
Degree of protection	IP20
Flammability rating	UL94/V0
Colour	Grey
EMC data
EMC data
Electrical fast transient/burst immunity	Compliant with:IEC 61326-1;A-leve
Surge (impact) immunity	Compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity	Compliant with:IEC 61326-1;conform to basic requirements
Electrostatic discharge immunity	Compliant with:IEC 61326-1;A-leve
Immunity to conducted disturbances, induced by radio-frequency fields	Compliant with:IEC 61326-1;conform to basic requirements
Low frequency common mode conduction	Compliant with:IEC 61326-1;conform to basic requirements
Operating conditions
Operating conditions
Operating temperature	﹣10℃～﹢60℃
Storage temperature	﹣20℃～＋70℃/less than 70% relative humidity (non condensing state)
Relative humidity	＜ 90% RH(no condensate)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection data
Connection data
Conductor cross section solid range	0.5～2.5mm²
Conductor cross section AWG min	12
Conductor cross section AWG max	24
Stripping length	8mm
Screw thread	M3
Connection method	Screw connection
Tightening torque min.	0.5 Nm
Tightening torque max.	0.6 Nm
Installation
Installation
Installation method	DIN35mm
