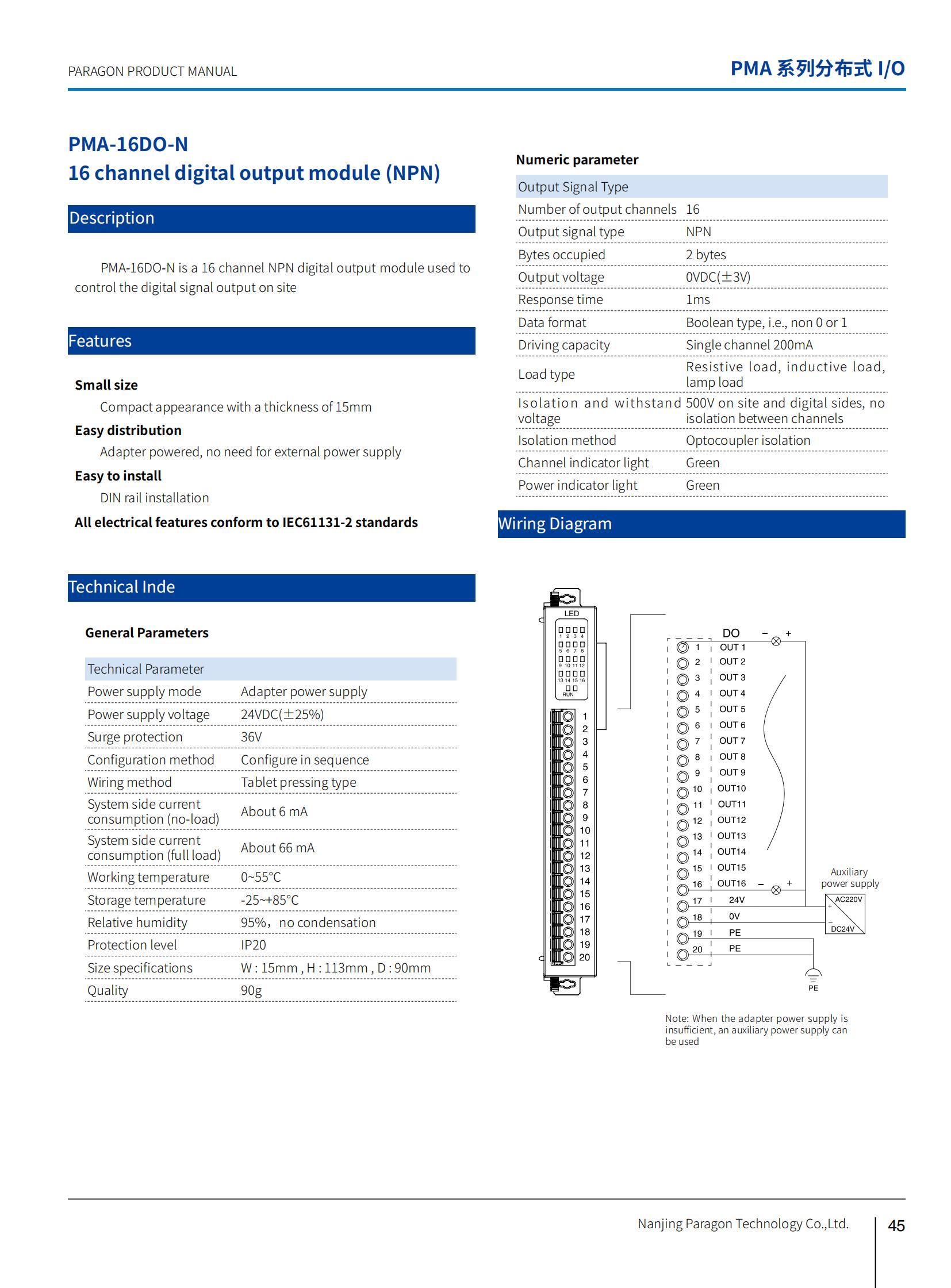

PMA-16DO-N 16 channel digital output module (NPN)

Picture Name

Classification:

PMA series

PMA-16DO-N is a 16 channel NPN digital output module used to control the digital signal output on site

Communication mode:

Click to consult
Add to comparison
Product inquiry
Product Details Technical parameters Download

Close
  • 产品对比
Total X Clear all

Contrast

Basic parameters

Number of channels

16

Bit width in process image

Output 2 bytes

Configuration method

Automatic configuration in sequence

Connection

Tablet pressing type

Drive capability

Single channel 200mA

Support overcurrent protection; Support overvoltage protection

Load type

Resistive load, inductive load, lamp load

Isolation method

Optocoupler isolation

Isolation and withstand voltage

500V on site and digital sides, no isolation between channels

Seismic/impact resistance performance

EN 60068-2-6/EN 60068-2-27/29

Anti electromagnetic interference/radiation performance

EN 61000-6-2/EN 61000-6-4

Current consumption

66mA

Number of inputs simultaneously connected

16

Output data

Output rated voltage

24VDC（±20%）

Number of output channels

16

Output signal type

 Leakage type (NPN type)
