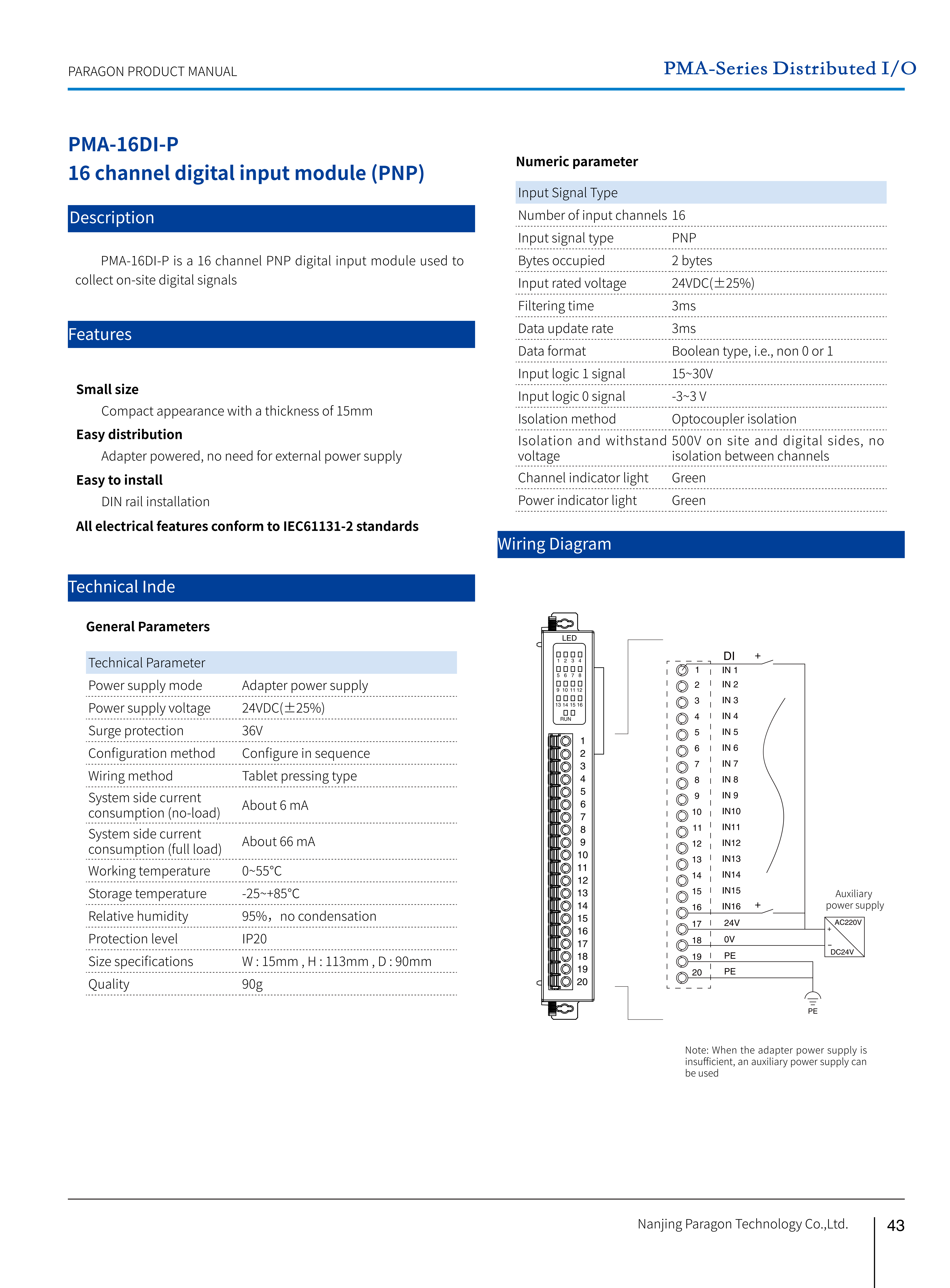

PMA-16DI-P 16 channel digital input module (PNP)
Classification:
PMA series
PMA-16DI-P is a 16 channel PNP digital input module used to collect on-site digital signals
Communication mode:
- 产品对比
Contrast
|
Basic parameters |
|
|
Number of channels |
16 |
|
Bit width in process image |
Input 2 bytes |
|
Configuration method |
Automatic configuration in sequence |
|
Connection |
Tablet pressing type |
|
Isolation method |
Optocoupler isolation |
|
Isolation and withstand voltage |
500V on site and digital sides, no isolation between channels |
|
Seismic/impact resistance performance |
EN 60068-2-6/EN 60068-2-27/29 |
|
Anti electromagnetic interference/radiation performance |
EN 61000-6-2/EN 61000-6-4 |
|
Current consumption |
25mA |
|
Cable Length |
Unshielded 200m |
|
Number of inputs simultaneously connected |
16 |
|
Data in |
|
|
Number of input channels |
16 |
|
Input Signal Type |
PNP |
|
Input Rated Voltage |
0VDC(±20%) |
|
Input logic 1 signal |
-3～3V |
|
Input logic 0 signal |
15～30V |
|
Debounce time |
3ms |
|
Typical value of input current |
3mA |
