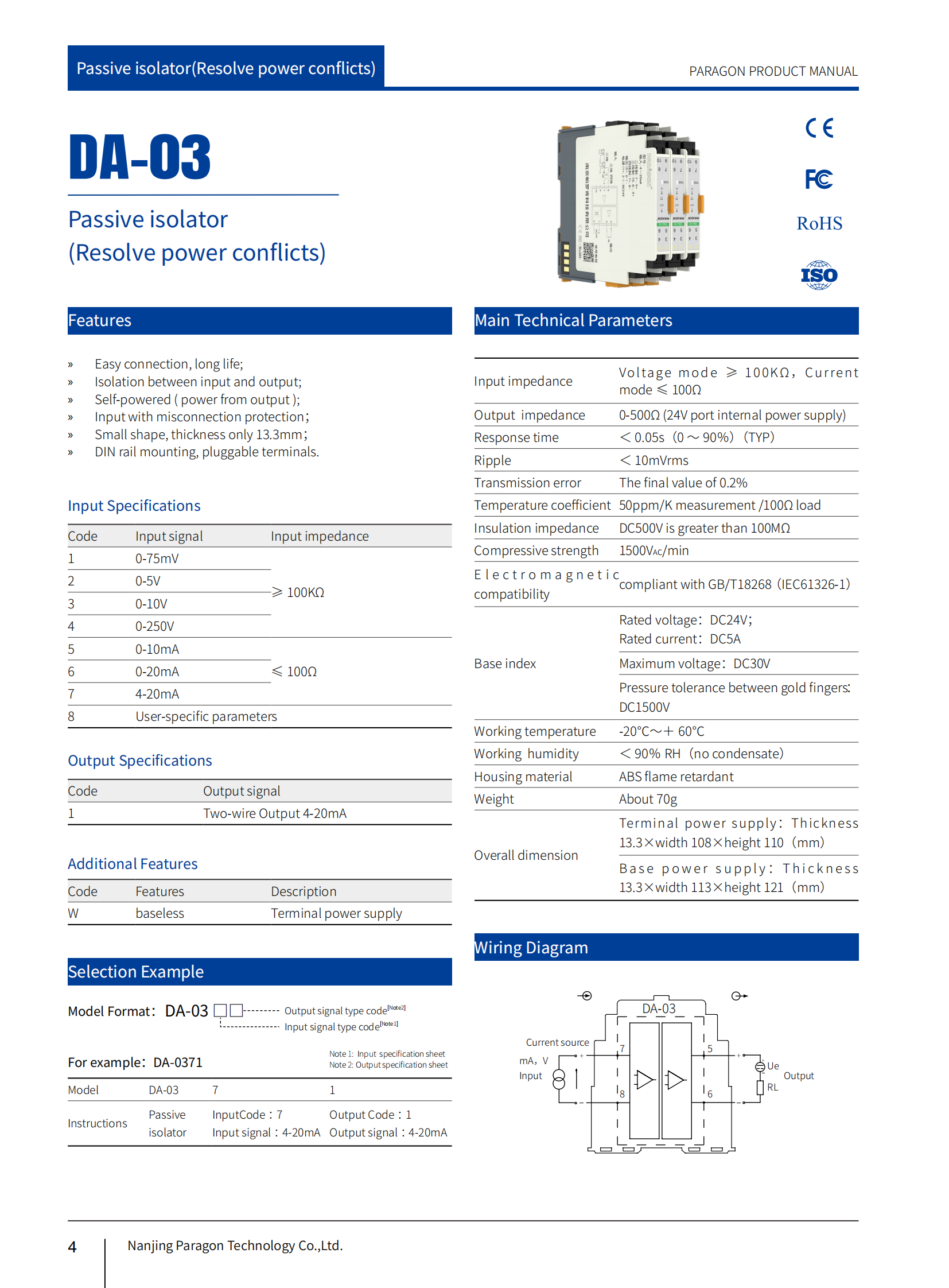

DA-03 Passive isolator (Resolve power conflicts)

Picture Name

Classification:

Base centralized power supply series

● Easy connection, long life; ● Isolation between input and output; ● Self-powered ( power from output); ● Input with misconnection protection; ● Smal mouthiesey minis.

Number of channels:

1input/1output

Input:

4~20mA,0~75mV,0~5V,0~10V,0~250V,0~10mA,0-20mA,User-specific parameters

Power distribution:

Output:

4~20mA

Power supply mode:

Loop Power Supply

Click to consult
Add to comparison
Product inquiry
Product Details Technical parameters Technology and Installation Download

Close
  • 产品对比
Total X Clear all

Contrast

General
Number of channels 1input/1output
Output accuracy(20°C) 0.2%F.S.
Temperature drift 50ppm/K
Response time ＜0.05s (0～90%) (TYP)
Dielectric strength 1500VAC/1min,2mA
Insulation resistance ≥100MΩ;500VDC
Electromagnetic compatibility compliant with GB/T18268 (IEC61326-1)
Weight About 70g
Field apparatus Current source
Input data
Input signal 0~75mV;0~250mA;4~20mA
Input impedance current≤100Ω；voltage≥100KΩ
Output data
Output signal Two wire system output 4-20mA
Output impedance ≤ 500 Ω (when the internal power supply of the port is 24V)
Overall dimension
Base power supply
height 121mm
width 113mm
Thickness 13.3mm
Terminal power supply
height 110mm
width 108mm
Thickness 13.3mm
Housing
Material PC+ABSflame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour white+grey
EMC data
Electrical fast transient/burst immunity compliant with:IEC 61326-1;A-leve
Surge immunity compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity compliant with:IEC 61326-1
Electrostatic discharge immunity compliant with:IEC 61326-1;A-leve
mmunity to conducted disturbances, induced by radio-frequency fields compliant with:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz compliant with:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃～＋80℃
Relative humidity ＜90% RH (no condensate)
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min.  0.5 Nm
Tightening torque max.  0.6 Nm
Installation
Installation method DIN35mm

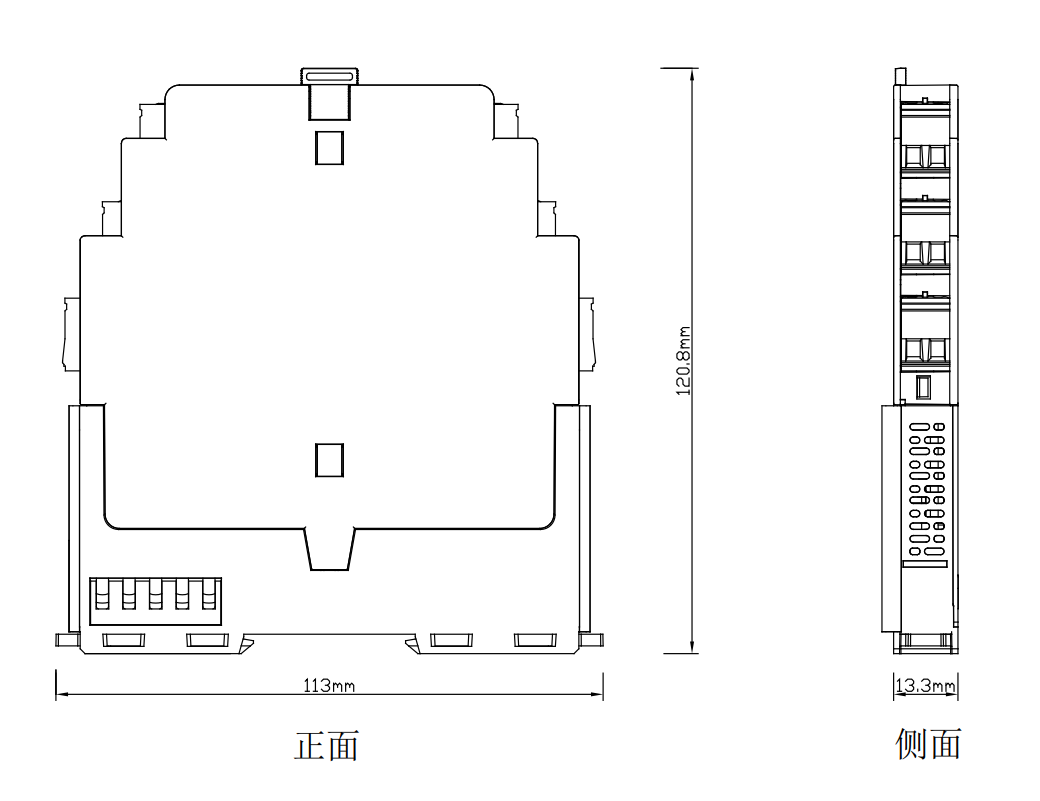

外形尺寸
安装方式
General
Number of channels 1input/1output
Output accuracy(20°C) 0.2%F.S.
Temperature drift 50ppm/K
Response time ＜0.05s (0～90%) (TYP)
Dielectric strength 1500VAC/1min,2mA
Insulation resistance ≥100MΩ;500VDC
Electromagnetic compatibility compliant with GB/T18268 (IEC61326-1)
Weight About 70g
Field apparatus Current source
Input data
Input signal 0~75mV;0~250mA;4~20mA
Input impedance current≤100Ω；voltage≥100KΩ
Output data
Output signal Two wire system output 4-20mA
Output impedance ≤ 500 Ω (when the internal power supply of the port is 24V)
Overall dimension
Base power supply
height 121mm
width 113mm
Thickness 13.3mm
Terminal power supply
height 110mm
width 108mm
Thickness 13.3mm
Housing
Material PC+ABSflame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour white+grey
EMC data
Electrical fast transient/burst immunity compliant with:IEC 61326-1;A-leve
Surge immunity compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity compliant with:IEC 61326-1
Electrostatic discharge immunity compliant with:IEC 61326-1;A-leve
mmunity to conducted disturbances, induced by radio-frequency fields compliant with:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz compliant with:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃～＋80℃
Relative humidity ＜90% RH (no condensate)
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min.  0.5 Nm
Tightening torque max.  0.6 Nm
Installation
Installation method DIN35mm
外形尺寸
安装方式
