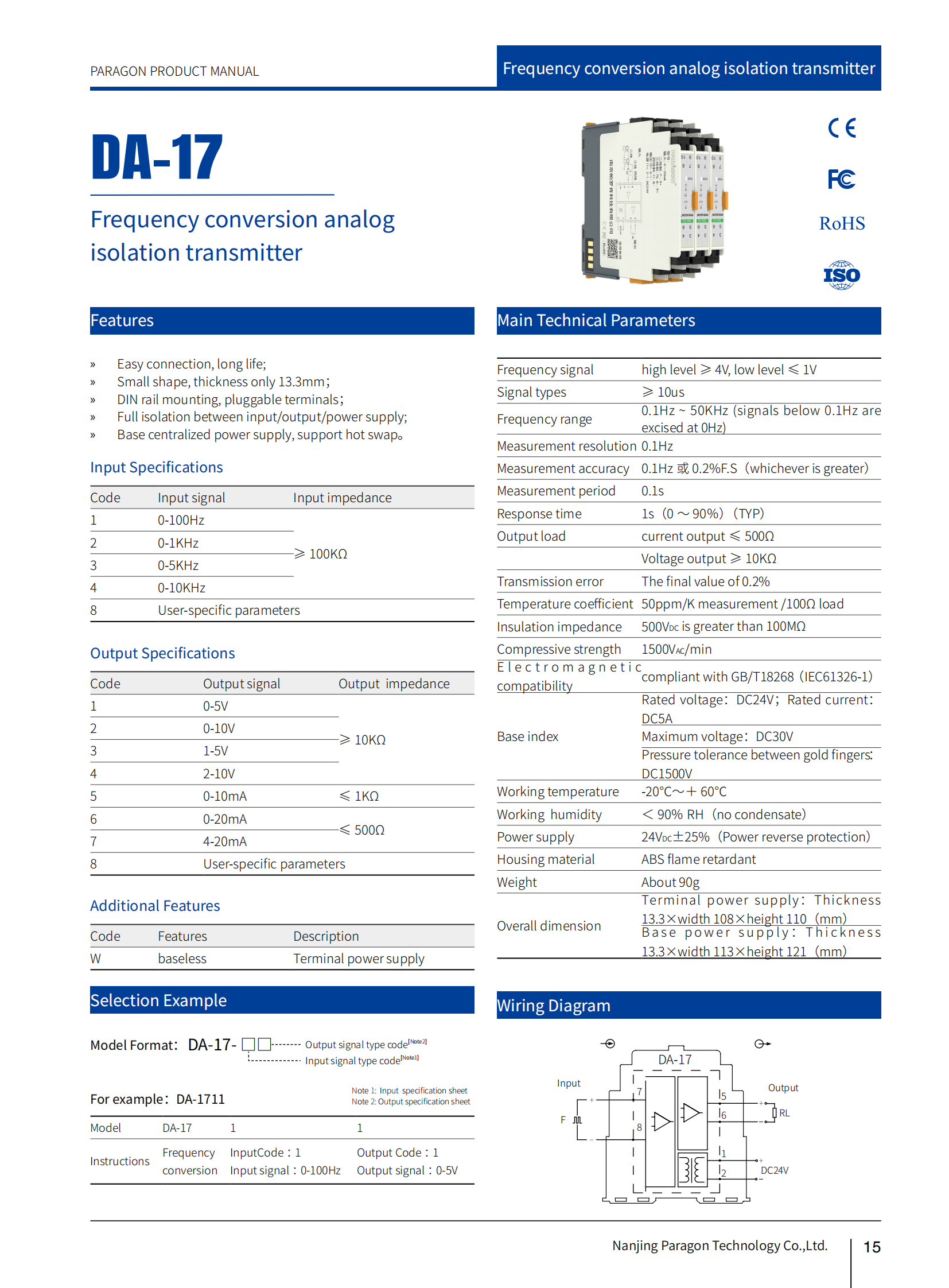

DA-17 Frequency conversion analog isolation transmitter

Picture Name

Classification:

Base centralized power supply series

● Easy connection, long life; ● Small shape, thickness only 13.3mm; ● DIN rail mounting, pluggable terminals; ● Full isolation between input/output/power supply; ● Base centralized power supply, support hot swap.

Number of channels:

1input/1output

Input:

0-100Hz,0-1KHz,0-5KHz,0-10KHz,User-specific parameters

Power distribution:

Output:

0-5V,0~10V,1-5V,2-10V,0~20mA,4~20mA,User-specific parameters,4-20mA（load≤500Ω）

Power supply mode:

24VDC

Click to consult
Add to comparison
Product inquiry
Product Details Technical parameters Technology and Installation Download

Close
  • 产品对比
Total X Clear all

Contrast

General
Number of channels 1input/1output
Output accuracy(20°C) 0.2%F.S.
Temperature drift 50ppm/K
Response time 1s (0～90%) (TYP)
Dielectric strength 1500VAC/1min,2mA
Insulation resistance ≥100MΩ;500VDC
Electromagnetic compatibility compliant with GB/T18268 (IEC61326-1)
Weight About 90g
Frequency signal high level≥4V；Low Level≤1V
Pulse width ≥10us
Frequency range 0.1Hz~50KHz(Signals below 0.1Hz are cut off as 0Hz）
Measurement resolution 0.1Hz
Measurement period 0.1s
Field apparatus Two wire frequency signal source
Input data
Input signal 0~50KHZ
Output impedance ≥100KΩ
Output data
Output signal 0~5V;1~10V0~20mA
Output impedance current≤500Ω；voltage≥10KΩ
Output Load current output≤500Ω；voltage output≥10KΩ
Power supply
Supply voltage(Ue) 24VDC±25%
Power protection Reverse protection of power supply
Power consumption ＜1W
Power supply mode Independent power supply
Power connecting mode Terminal power supply；Base power supply
Overall dimension
Base power supply
height 121mm
width 113mm
Thickness 13.3mm
Terminal power supply
height 110mm
width 108mm
Thickness 13.3mm
Housing
Material PC+ABSflame retardant
Degree of protection IP20
Flammability rating UL94/V0
Colour white+grey
EMC data
Electrical fast transient/burst immunity compliant with:IEC 61326-1;A-leve
Surge immunity compliant with:IEC 61326-1;B-leve
Radiated,radio-frequency,electromagnetic field immunity compliant with:IEC 61326-1
Electrostatic discharge immunity compliant with:IEC 61326-1;A-leve
mmunity to conducted disturbances, induced by radio-frequency fields compliant with:IEC 61326-1
Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz compliant with:IEC 61326-1
Operating conditions
Ambient temperature -20℃~+60℃
Storage temperature -40℃～＋80℃
Relative humidity ＜90% RH (no condensate)
Environmental requirements The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using
Connection data
Conductor cross section solid range 0.5~2.5mm²
Conductor cross section AWG min. 12
Conductor cross section AWG max. 24
Stripping length 8mm
Screw thread M3
Connection method Screw connection
Tightening torque min.  0.5 Nm
Tightening torque max.  0.6 Nm

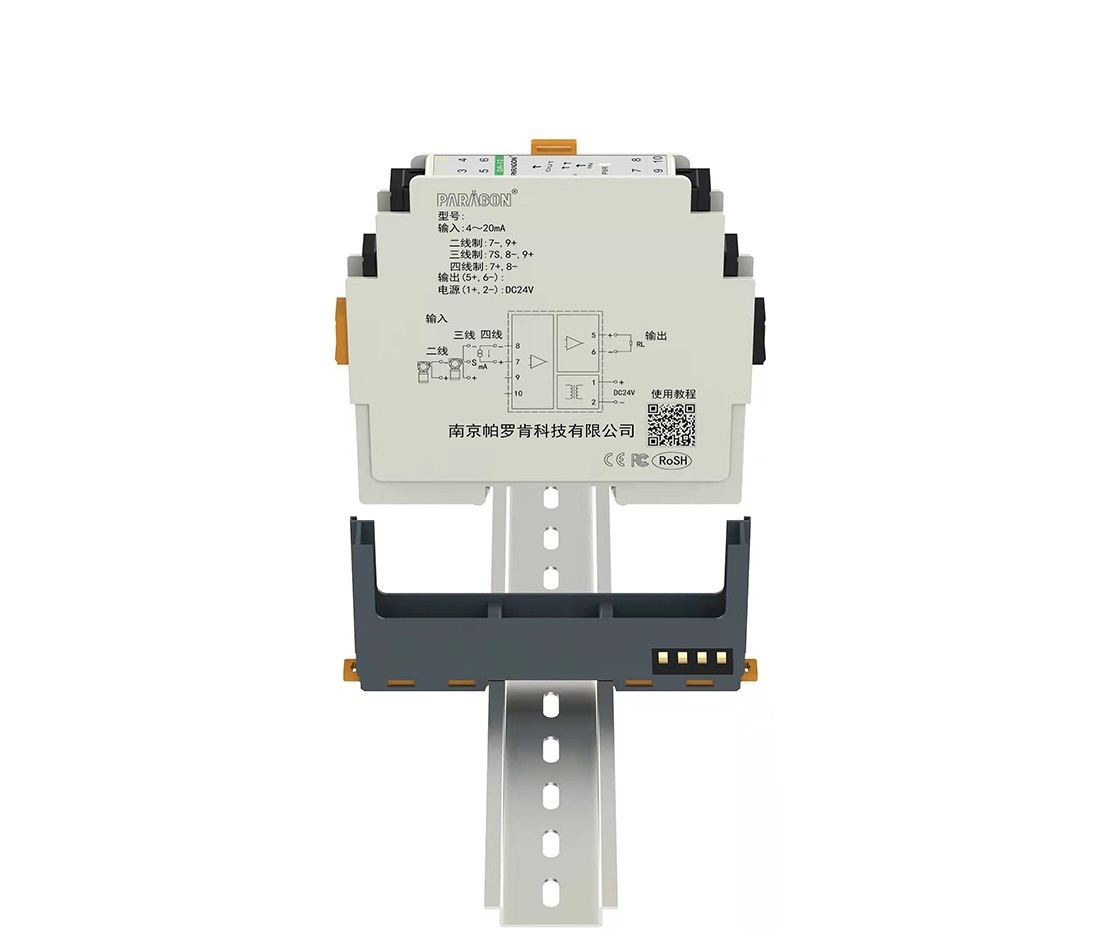

Installation
Installation method DIN35mm
