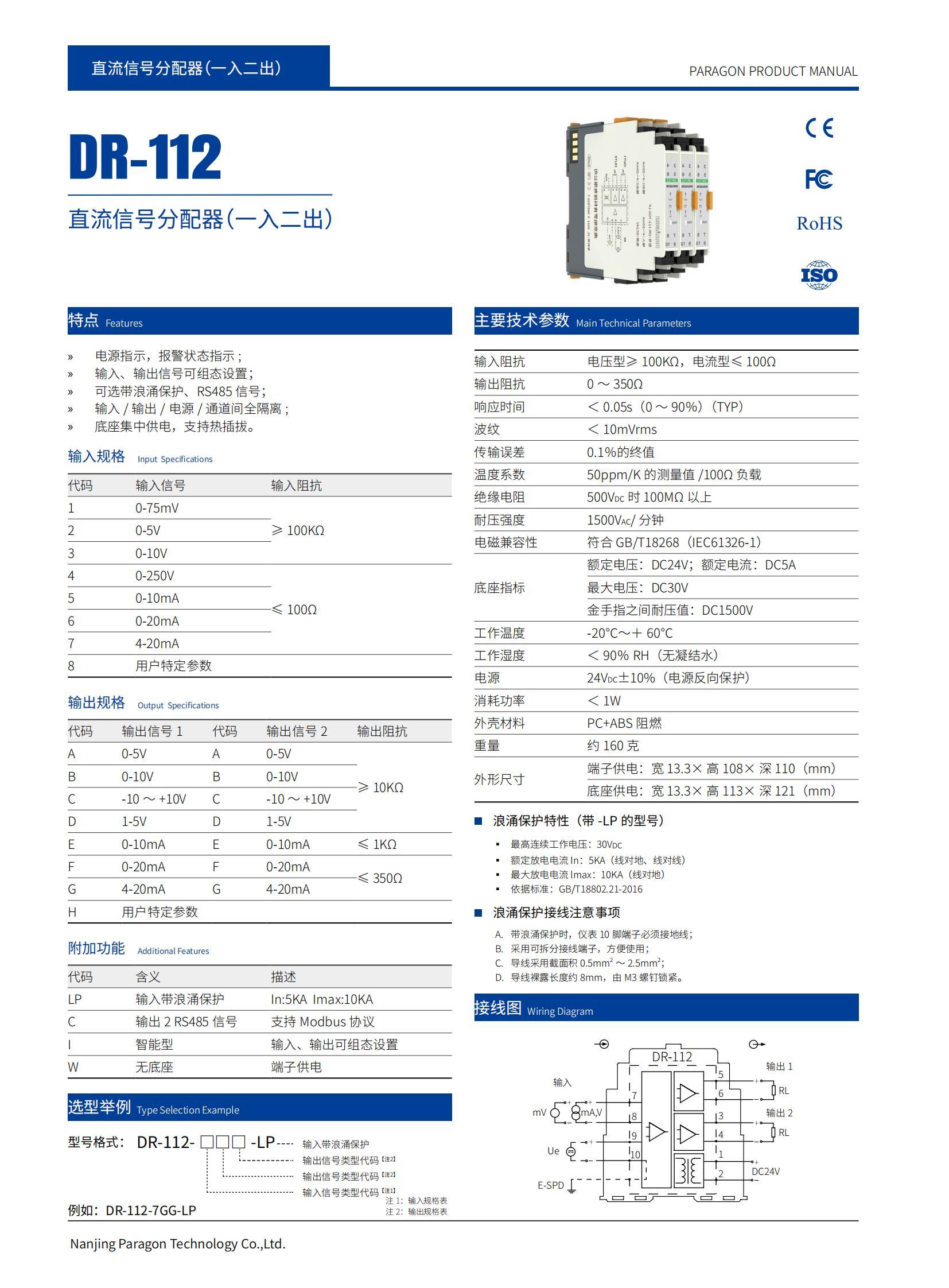

DR-112 Dc signal distributor (1 input/2 outputs)
Classification:
Base centralized power supply series
● Power indicator, alarm status indicator; ● Optional with surge protection, RS485 signal; ● Full isolation between input/output/power supply; ● Base centralized power supply, support hot swap.
Number of channels:
1input/2outputs
Input:
0~75mV,0~5V,0~10V,0~250V,0~10mA,0-20mA,4~20mA,User-specific parameters,0-75mV
Power distribution:
Output:
0-5V,0~10V,1-5V,4~20mA,0~20mA,User-specific parameters,0/4~20mA(passive),4-20mA（load≤500Ω）
Power supply mode:
24VDC
- 产品对比
Contrast
| General | |
| Number of channels | 1input/2outputs |
| Output accuracy(20°C) | 0.1%F.S. |
| Temperature drift | 50ppm/K |
| Response time | ＜0.05s (0～90%) (TYP) |
| Dielectric strength | 1500VAC/1min,2mA |
| Insulation resistance | ≥100MΩ;500VDC |
| Electromagnetic compatibility | compliant with GB/T18268 (IEC61326-1) |
| Weight | About 120g |
| Field apparatus | Current source |
| Input data | |
| Input signal | 0-75mV;0-250V;0-20mA; |
| Input impedance | current≤100Ω；voltage≥100KΩ |
| Output data | |
| Output signal | -10V~+10V;4~20mA |
| Output impedance | 350Ω |
| Power supply | |
| Supply voltage(Ue) | 24VDC±10% |
| Power protection | Reverse protection of power supply |
| Power consumption | ≤1W |
| Power supply mode | Independent power supply |
| Power connecting mode | Terminal power supply；Base power supply |
| Overall dimension | |
| Base power supply | |
| height | 121mm |
| width | 113mm |
| Thickness | 13.3mm |
| Terminal power supply | |
| height | 110mm |
| width | 108mm |
| Thickness | 13.3mm |
| Housing | |
| Material | PC+ABSflame retardant |
| Degree of protection | IP20 |
| Flammability rating | UL94/V0 |
| Colour | white+grey |
| EMC data | |
| Electrical fast transient/burst immunity | compliant with:IEC 61326-1;A-leve |
| Surge immunity | compliant with:IEC 61326-1;B-leve |
| Radiated,radio-frequency,electromagnetic field immunity | compliant with:IEC 61326-1 |
| Electrostatic discharge immunity | compliant with:IEC 61326-1;A-leve |
| mmunity to conducted disturbances, induced by radio-frequency fields | compliant with:IEC 61326-1 |
| Immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz | compliant with:IEC 61326-1 |
| Operating conditions | |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃～＋80℃ |
| Relative humidity | ＜90% RH (no condensate) |
| Environmental requirements | The air should not contain any medium corrupting the coat of chrome,nickel and silver.Moreover,violent quiver and impact or any cause of electromagnetic induction (such as big current or spark,etc.)must be avoided when using |
| Connection data | |
| Conductor cross section solid range | 0.5~2.5mm² |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 24 |
| Stripping length | 8mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
| Installation | |
| Installation method | DIN35mm |
