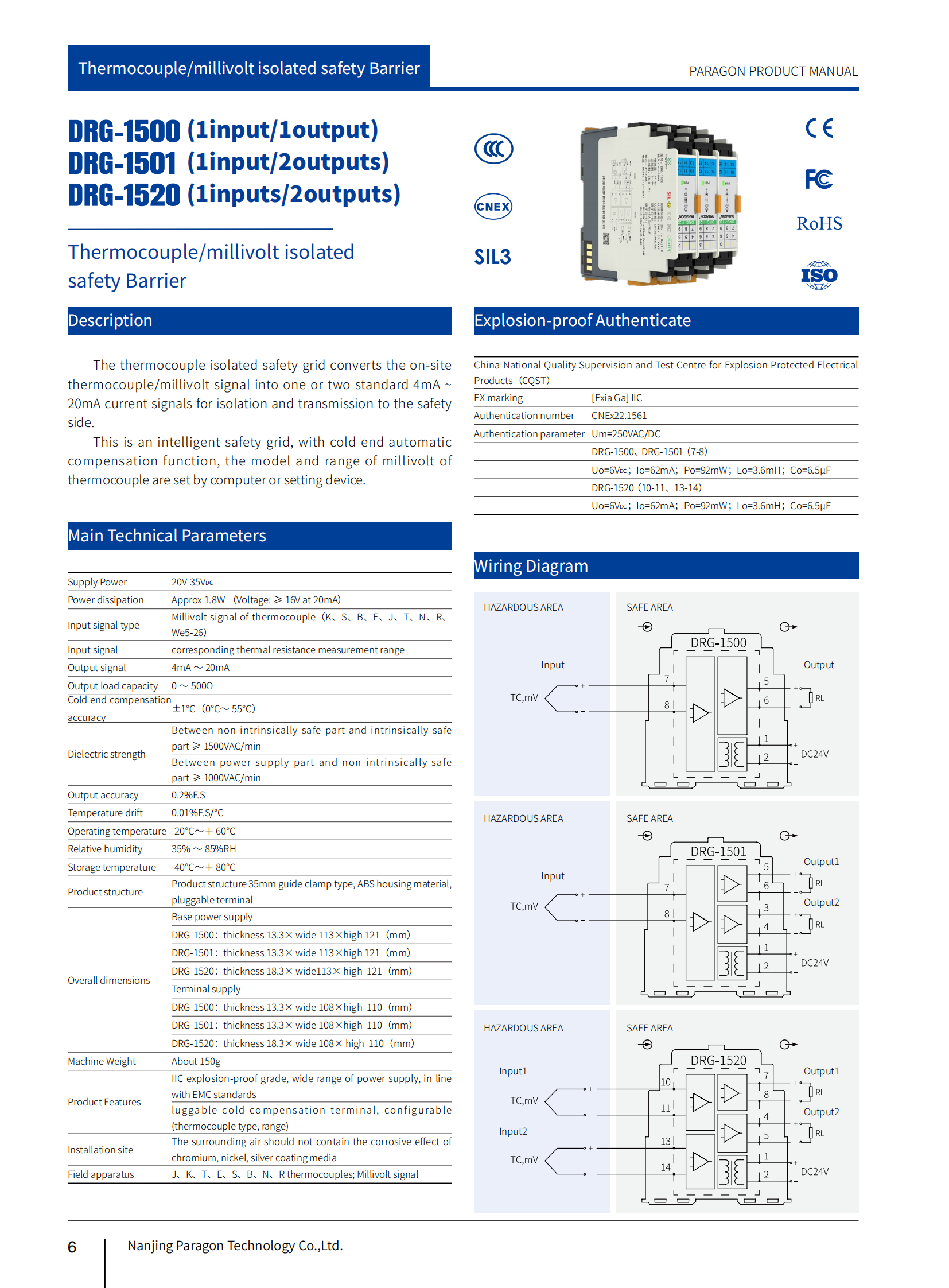

DRG-1500 Thermocouple/Millivolt Isolated Safety Barrier
所属分类:
DRG Series
This device converts on-site thermocouple/mV signals into standard 4–20 mA current signals and isolates them for transmission to the safe side. It is an intelligent safety barrier featuring automatic cold-junction compensation, with thermocouple mV signals and measurement ranges configurable via a computer.
通道数:
One in, one out
输入:
配电:
输出:
供电方式:
电源连接方式 :
产品详情
技术参数
技术与安装
下载

Close
- 产品对比
去对比
Basic Parameters |
|
| Number of channels | 1 in, 1 out |
| Output accuracy (20°C) | 0.2% F.S. (Typical value: 0.05% F.S.) |
| Temperature drift | 0.01% F.S./°C |
| Cold-end compensation accuracy | ±1℃ (0℃–55℃) |
| Response time | 90% of the final value is reached in 2 ms. |
| Dielectric strength | 1500 VAC for intrinsically safe terminals vs. non-intrinsically safe terminals; 1000 VAC for non-intrinsically safe terminals vs. non-intrinsically safe terminals. |
| Insulation resistance | Non-intrinsically safe terminal–intrinsically safe terminal ≥ 100 MΩ; power supply–non-intrinsically safe terminal ≥ 100 MΩ. |
| Electromagnetic Compatibility | Complies with IEC 61326-1 (GB/T 18268) and IEC 61326-3-1. |
| Explosion-proof marking | [Ex ia Ga]ⅡC |
| Weight | Approximately 150g |
| Connected field devices | J, K, T, E, S, B, N, and R thermocouples |
| Applicable Locations | Zone 0, Zone 1, Zone 2; IIA, IIB, IIC hazardous areas |
Input data |
|
| Input signal range | Corresponding thermocouple measurement range |
| Input Signal Type | Thermocouple millivolt signals (K, S, B, E, J, T, N, R, We5-26) |
Output data |
|
| Output signal | 4 mA to 20 mA |
| Output load capacity | 0–500 Ω |
Power supply |
|
| Power Supply | 20~35V DC |
| Power Protection | Reverse Power Protection |
| Power consumption | Approximately 10,000 (with 24 V supply and 20 mA output) |
| Power Supply Method | Independent power supply |
| Power Connection Method | Base power supply; terminal power supply |
Size |
|
Centralized power supply |
|
| Depth | 120.8mm |
| Height | 113mm |
| Width | 13.3mm |
Independent power supply |
|
| Depth | 110mm |
| Height | 108mm |
| Width | 13.3mm |
Housing |
|
| Materials | PC+ABS flame retardant |
| Protection Level | IP20 |
| Flame-retardant rating | UL94/V0 |
| Color | White + Gray |
EMC data |
|
| Electrical Fast Transient/Burst Immunity | Standards: IEC 61326-1; Class A |
| Surge (Impulse) Immunity | Standards: IEC 61326-1; Class B |
| Radio-frequency electromagnetic field radiation immunity | Standards: IEC 61326-1; Compliance with Essential Requirements |
| Electrostatic Discharge Immunity | Standards: IEC 61326-1; Class A |
| Immunity to Conducted Disturbances Induced by Radio-Frequency Fields | Standards: IEC 61326-1; Compliance with Essential Requirements |
| Low-Frequency Common-Mode Conduction | Standards: IEC 61326-1; Compliance with Essential Requirements |
Operating Environment |
|
| Continuous operating temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 35%~85%RH |
| Environmental Requirements | The surrounding environment shall be free from severe vibration, impact, and electromagnetic interference such as high currents and sparks. The air shall not contain any corrosive media that can attack chromium, nickel, or silver plating, nor shall it contain flammable or explosive substances. |
Connection Parameters |
|
| Wire cross-sectional area range | 0.5~2.5 mm² |
| Minimum Wire Cross-Sectional Area AWG | 24 |
| Maximum Conductor Cross-Sectional Area AWG | 12 |
| Thread | M3 |
| Maximum wire stripping length | 8mm |
| Connection method | Screw connection |
| Minimum Tightening Torque | 0.5 Nm |
| Maximum Tightening Torque | 0.6 Nm |
Install |
|
| Installation Method | DIN 35 mm rail mounting |
| External dimensions | |||
| Base-centralized power supply type | Terminal-powered | ||
![]() |
![]() |
||
| Installation Method | |||
![]() |
![]() |
![]() |
![]() |
