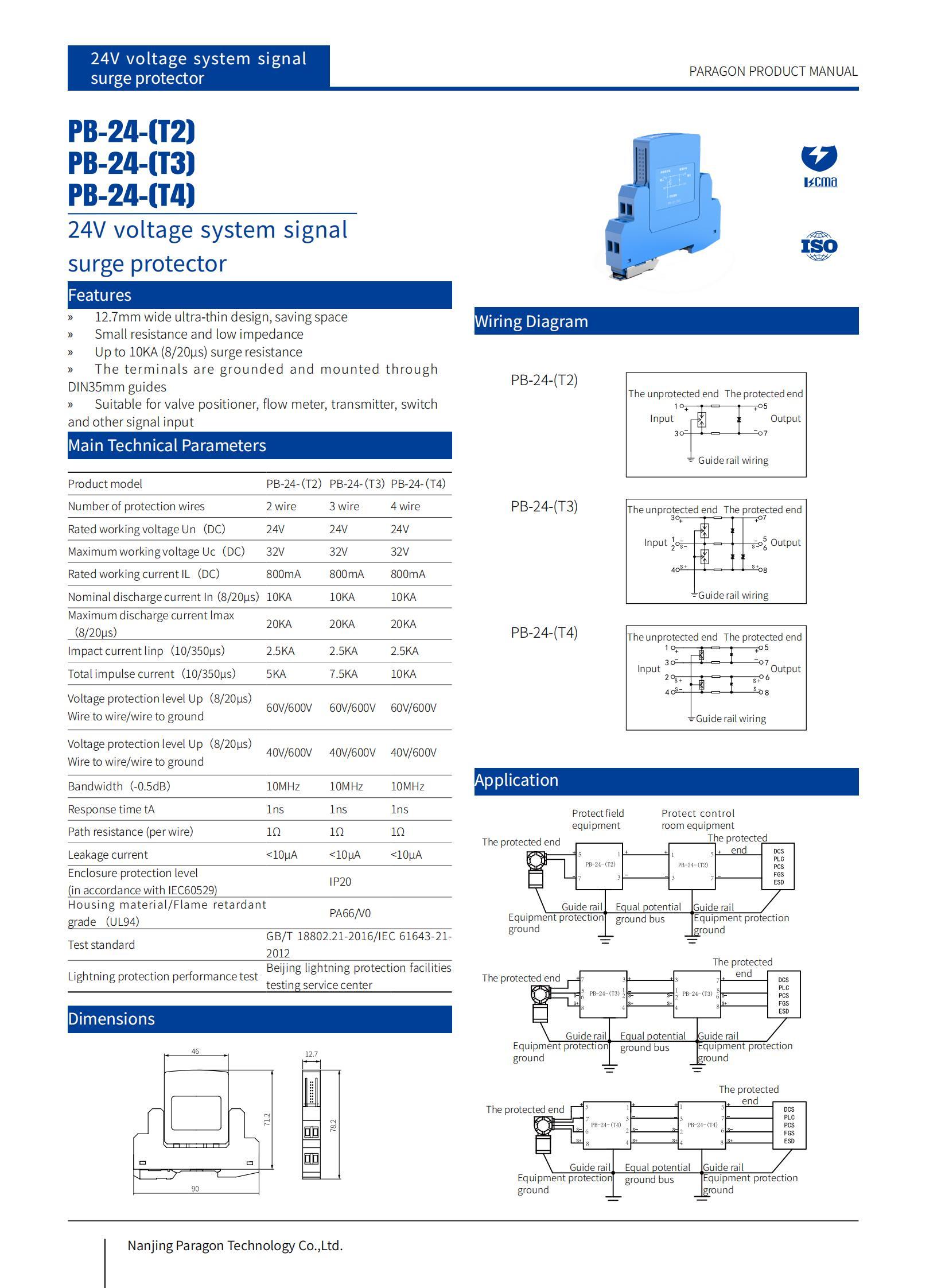

PB-24-(T2) 24V Voltage system signal surge protector

Classification:

PB series

Voltage system signal surge protector 12.5mm wide ultra-thin design, space saving, low path resistance and impedance Up to 10kA (8/20us) surge resistance Terminal grounding, installed through DIN35mm guide rail

Wire system:

Nominal discharge current In:

10kA

Applicable voltage:

24V

Connection mode:

Push-in connection

Explosion proof:

Remote signaling function:

not have

Applicable distribution system:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Basic parameters
Number of protective lines	2-wire
Rated working powerUn（DC）	24V
Maximum working voltageUc(DC)	32V
Rated working currentIL(DC)	800mA
Nominal discharge current In(8/20us)	10KA
Maximum discharge current Imax(8/20us)	20KA
Impulse current Iinp(10/350us）	2.5KA
Total impulse current Iinp(10/350us）	5KA
Voltage protection level UP(8/20us) Line to line, line to ground	40V/600V
Voltage protection level UP(8/20us) Line to line, line to ground	20V/600V
Bandwidth（-0.5dB)	10MHz
Response timetA	1ns
Path resistance（Each line）	1Ω
Leakage current	＜10uA
Suit	Suitable for signal input of thermal resistors, thermocouples, etc
Size
Depth	78.2mm
Height	90mm
Width	12.7mm
Housing
Material	ABS flame retardant
Protection grade	IP20
Flame retardant grade	PA66/V0
Colour	Blue
Standards/Procedures
Testing standards meet	GB/T 18802.21-2016/IEC 61643-21-2012
Lightning protection performance test	Beijing Lightning Protection Facilities Testing Service Center
Usage environment
Continuous operating temperature	-20℃~+60℃
Storage temperature	-40℃~+80℃
Relative humidity	10%~90%
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Connection parameters
Available cross-sectional range of wires	0.5~2.5mm²
Minimum conductor cross-section AWG	12
Maximum conductor cross-section AWG	24
Strip length	8mm
Thread	M3
Connection method	Screw connection
Minimum tightening torque	0.5 Nm
Maximum tightening torque	0.6 Nm
Install
Installation method	DIN35mm guide rail installation
