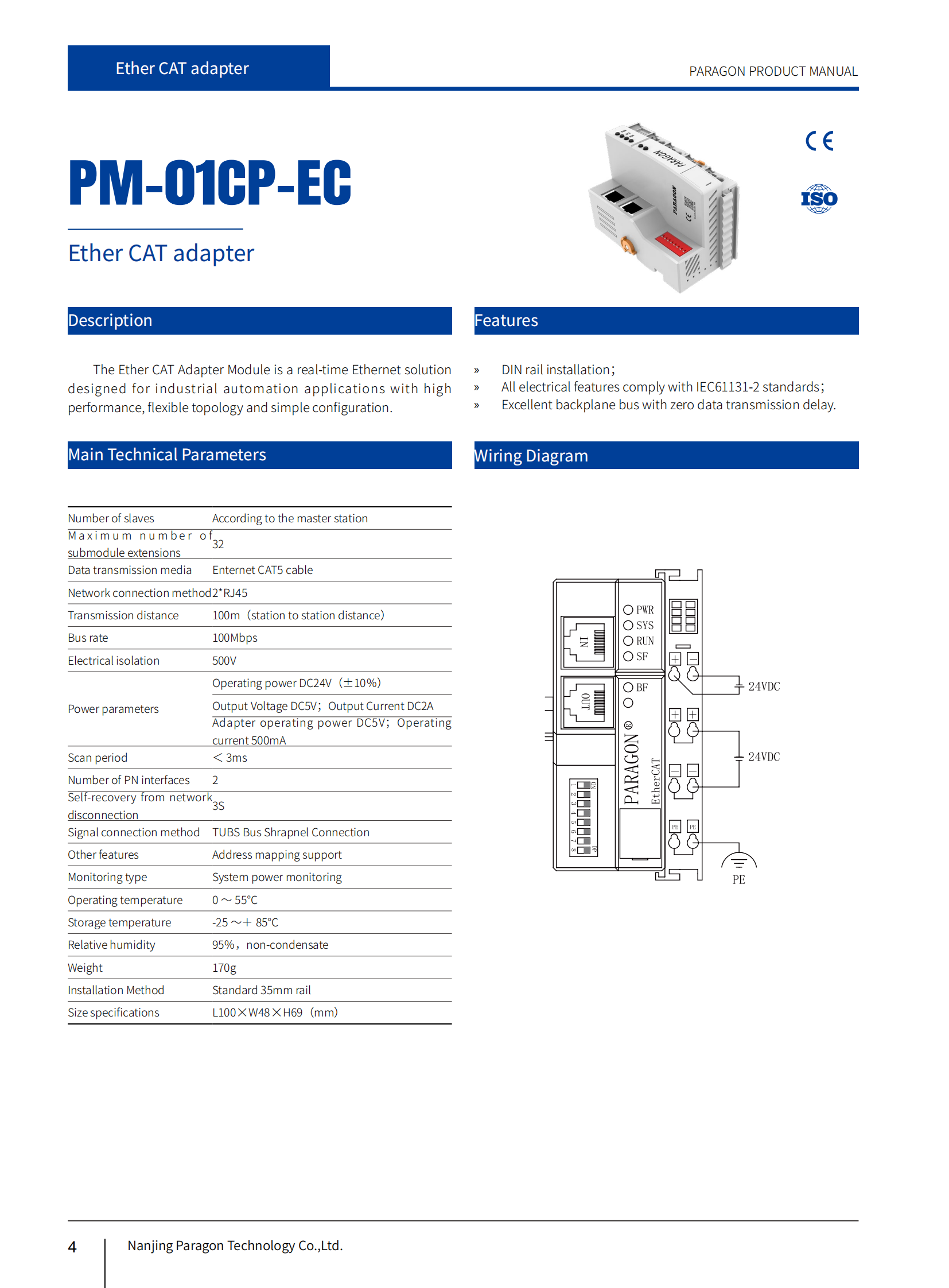

PM-01CP-EC Ether CAT adapter

Classification:

PM series

The Ether CAT Adapter Module is a real-time Ethernet solution designed for industrial automation applications with high performance, flexible topology and simple configuration.

Communication mode:

EtherCAT

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Basic parameters
Number of slave stations	According to the main station
Maximum number of sub module extensions	32
Data transmission medium	Enternet CAT5 cable
Connection method	2*RJ45
Distance	100m(Distance between stations)
Bus rate	100Mbps
Electrical isolation	500V
Scan period	＜3ms
Number of PN interfaces	2
Network outage self recovery	3S
Connection method	TUBS bus shrapnel connection
Other characteristics	Support address mapping
Monitoring type	System power monitoring
Weight	170g
Data in
Input Current	100mA
Output data
Output voltage	DC5V
Output current	DC2A
Power supply parameters
Working power supply	24VDC±10%
Size
Length	100mm
Width	48mm
Height	69mm
Housing
Material	ABS flame retardant
Protection grade	IP20
Flame retardant grade	UL94/V0
Colour	White
Usage environment
Continuous operating temperature	0℃~55℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95% RH (No condensed water)
Environmental requirements	There should be no strong vibrations, impacts, high currents, sparks or other electromagnetic induction effects in the surrounding environment. The air should not contain media that corrode chromium, nickel, and silver coatings, and should not contain flammable or explosive substances
Install
Installation method	DIN35mm guide rail installation
