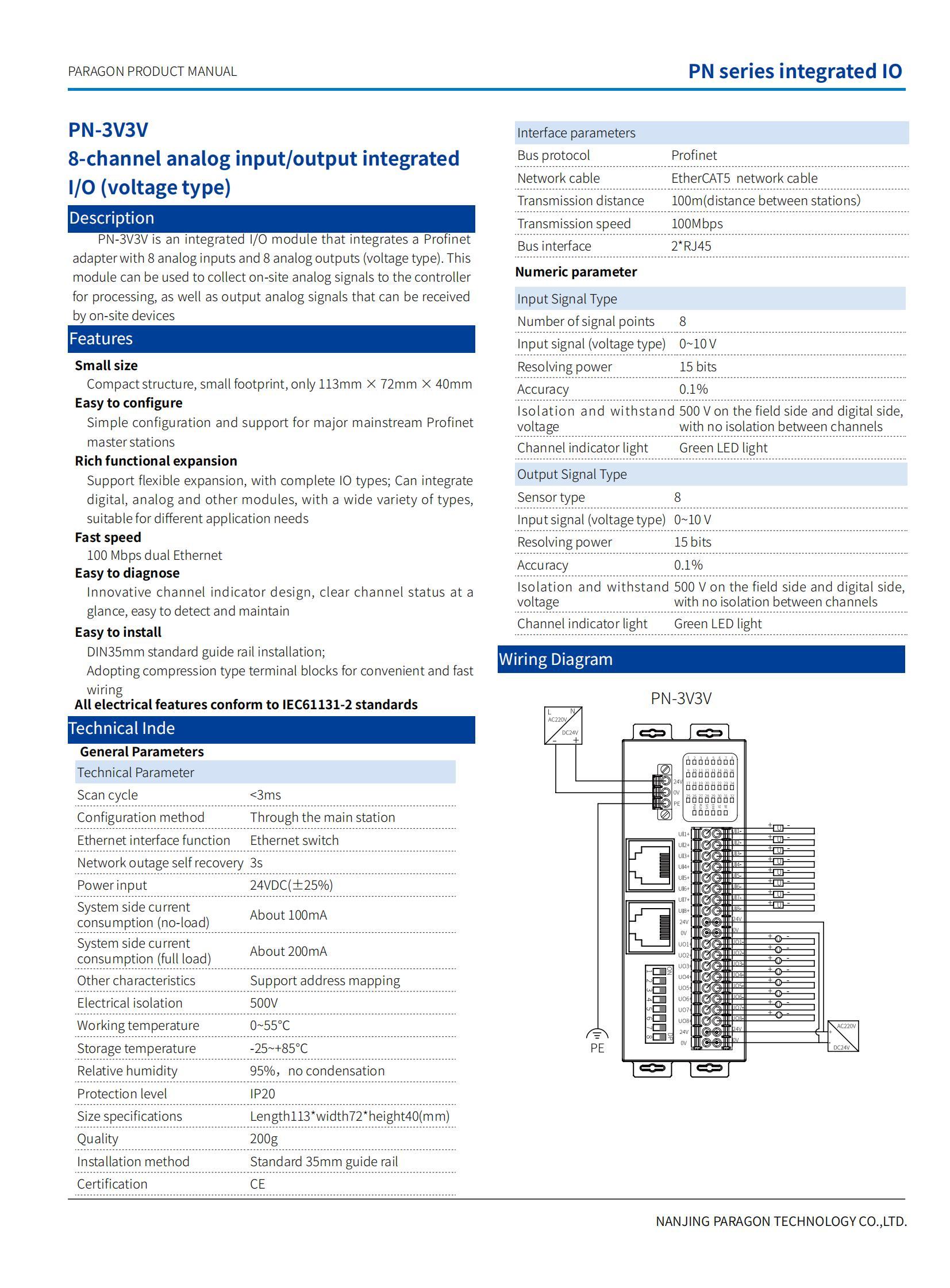

PN-3V3V 8-channel analog input output integrated I/O (voltage type)

Classification:

Integrated

PN-3V3V is an integrated I/O module that integrates a Profinet adapter with 8 analog inputs and 8 analog outputs (voltage type). This module can be used to collect on-site analog signals to the controller for processing, as well as output analog signals that can be received by on-site devices

Communication mode:

PROFINET

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Technical Parameter

Scanning cycle	＜3ms
Configuration method	Through the main station
Ethernet interface function	Ethernet switch
Network outage self recovery	3s
Power input	24VDC(±25%)
Current consumption	System side current consumption (no-load) 100mA
	System side current consumption (full load) 200mA
Other features	Support for address mapping
Electrical isolation	500V
Working temperature	0～55℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95%, no condensing
Protection level	IP20
Size specification	Length 113 * width 72 * height 40 (mm)
Weight	200g
Installation method	Standard 35mm guide rail
Certification	CE
Interface parameters

Bus protocol	Profinet
Network cable	EtherCAT5 network cable
Transmission distance	100M (station to station distance)
Transmission rate	100Mbps
Bus interface	2*RJ45
Numeric parameter

Input signal type

Input points	8
Input signal (voltage type)	0～10 V
Resolution	15 bits
Accuracy	0.10%
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
Output signal type

Sensor type	8
Input signal (voltage type)	0～10 V
Resolution	15 bits
Accuracy	0.10%
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
