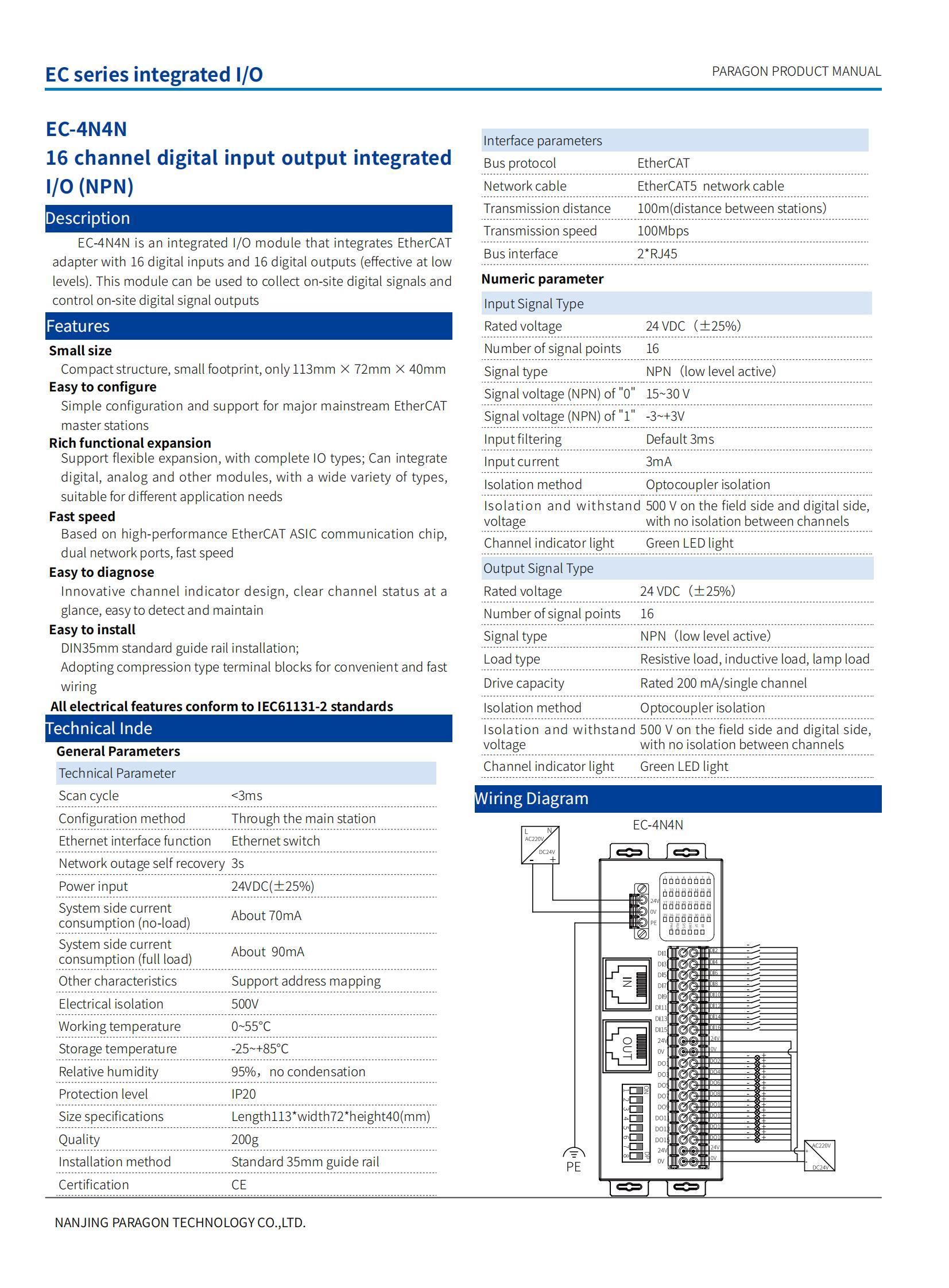

EC-4N4N 16 Channel Digital Input Output Integrated I/O (NPN)

Classification:

Integrated

EC-4N4N is an integrated I/O module that integrates EtherCAT adapter with 16 digital inputs and 16 digital outputs (effective at low levels). This module can be used to collect on-site digital signals and control on-site digital signal outputs

Communication mode:

EtherCAT

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Technical Parameter
Scanning cycle	＜3ms
Configuration method	Through the main station
Ethernet interface function	Ethernet switch
Network outage self recovery	3s
Power input	24VDC(±25%)
Current consumption	System side current consumption (no-load) 70mA
	System side current consumption (full load) 90mA
Other features	Support for address mapping
Electrical isolation	500V
Working temperature	0～55℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95%, no condensing
Protection level	IP20
Size specification	Length 113 * width 72 * height 40 (mm)
Weight	200g
Installation method	Standard 35mm guide rail
Certification	CE
Interface parameters
Bus protocol	EtherCAT
Network cable	EtherCAT5 network cable
Transmission distance	100M (station to station distance)
Transmission rate	100Mbps
Bus interface	2*RJ45
Numeric parameter
Input signal type
Rated voltage	24 VDC(±25%)
Number of signal points	16
Signal type	NPN(low level active)
Signal voltage (NPN) of '0'	15～30 V
Signal voltage (NPN) of '1'	﹣3～﹢3 V
Input filtering	Default 3 ms
Input current	3 mA
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
Output signal type
Rated voltage	24 VDC(±25%)
Number of signal points	16
Signal type	NPN(low level active)
Load type	Resistive load, inductive load, lamp load
Drive capacity	Rated 200mA/single channel
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
