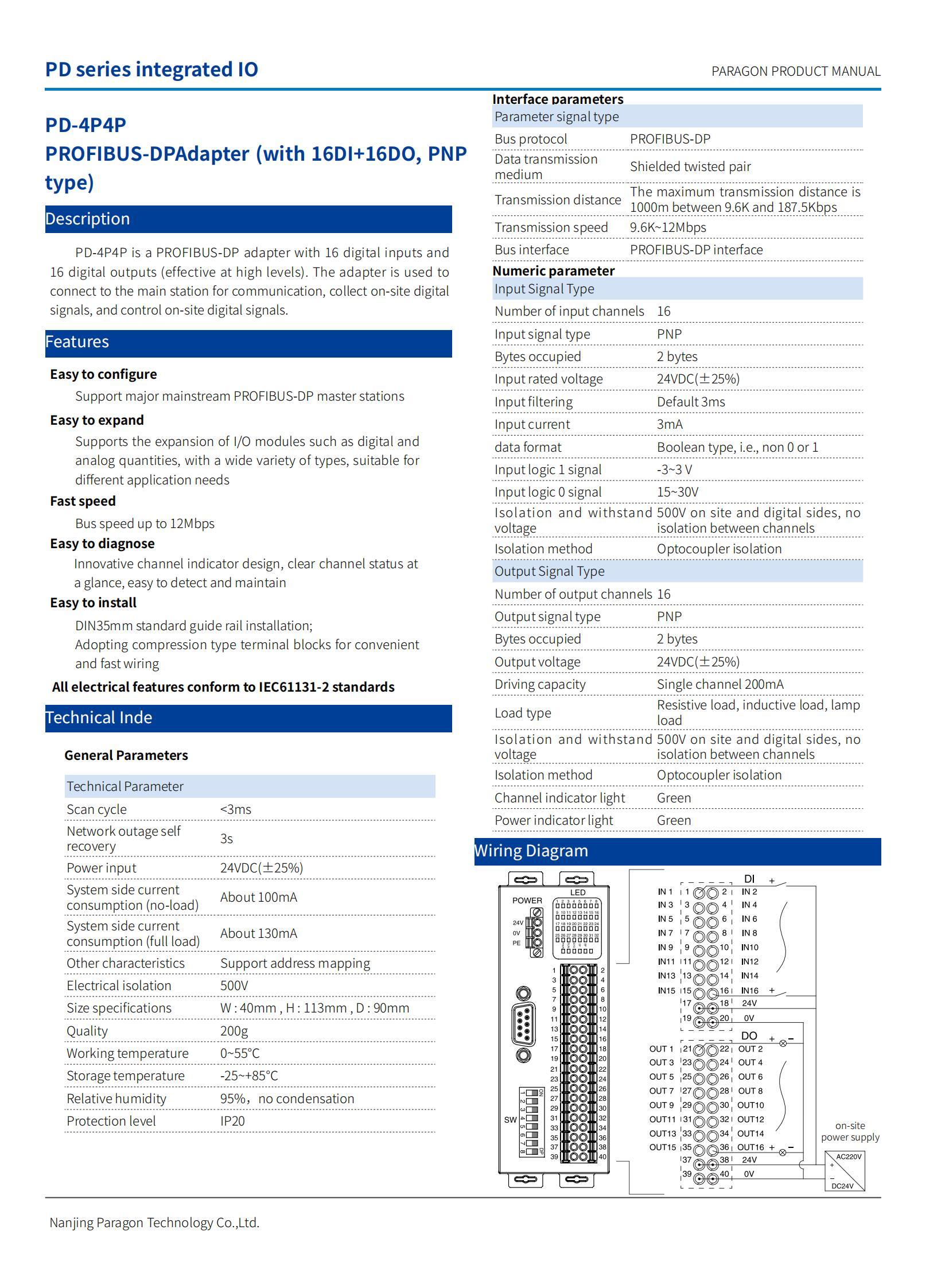

PD-4P4P PROFIBUS-DPAdapter (with 16DI+16DO, PNP type)

Classification:

Integrated

PD-4P4P is a PROFIBUS-DP adapter with 16 digital inputs and 16 digital outputs (effective at high levels). The adapter is used to connect to the main station for communication, collect on-site digital signals, and control on-site digital signals.

Number of channels:

Input:

Output:

Power supply mode:

Click to consult

Add to comparison

Product inquiry

Product Details Technical parameters Download

产品对比

Total X Clear all

Contrast

Technical Parameter

Scanning cycle	＜3ms
Configuration method	Through the main station
Power input	24VDC(±25%)
Current consumption	System side current consumption (no-load) 100mA
	System side current consumption (full load) 130mA
Other features	Support for address mapping
Electrical isolation	500V
Working temperature	0～55℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95%, no condensing
Protection level	IP20
Size specification	W:40mm,H:113mm,D:90mm
Weight	200g
Installation method	Standard 35mm guide rail
Certification	CE
Interface parameters

Bus protocol	PROFIBUS-DP
Network cable	Shielded twisted pair
Transmission distance	The maximum transmission distance is 1000m between 9.6K and 187.5Kbps
Transmission rate	9.6K～12Mbps
Bus interface	PROFIBUS-DP interface
Numeric parameter

Input signal type

Rated voltage	24 VDC(±25%)
Number of signal points	16
Signal type	PNP(high level active)
Signal voltage (PNP) of '0'	﹣3～﹢3 V
Signal voltage (PNP) of '1'	15～30 V
Input filtering	Default 3 ms
Input current	3 mA
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
Output signal type

Rated voltage	24 VDC(±25%)
Number of signal points	16
Signal type	PNP (high level active)
Load type	Resistive load, inductive load, lamp load
Drive capacity	Rated 200mA/single channel
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
