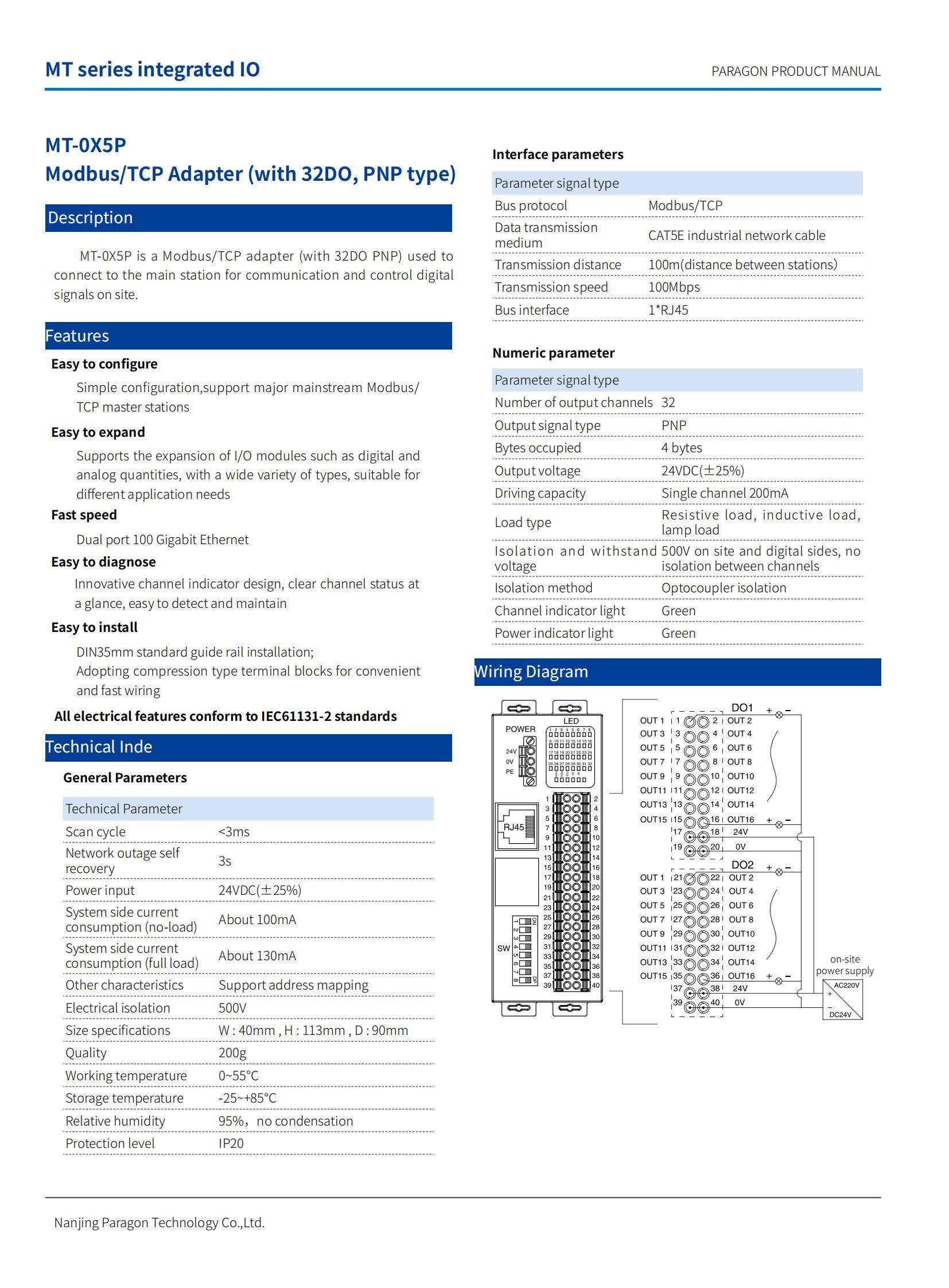

MT-0X5P ModbusTCP Adapter (with 32DO, PNP type)

Classification:

Integrated

MT-0X5P is a Modbus/TCP adapter (with 32DO PNP) used to connect to the main station for communication and control digital signals on site.

Number of channels:

Input:

Output:

Power supply mode:

Product Details Technical parameters Download

Total X Clear all

Contrast

Technical Parameter
Scanning cycle	＜3ms
Configuration method	Through the main station
Ethernet interface function	Ethernet switch
Network outage self recovery	3s
Power input	24VDC(±25%)
Current consumption	System side current consumption (no-load) 100mA
	System side current consumption (full load) 130mA
Other features	Support for address mapping
Electrical isolation	500V
Working temperature	0～55℃
Storage temperature	﹣25～﹢85℃
Relative humidity	95%, no condensing
Protection level	IP20
Size specification	W:40mm,H:113mm,D:90mm
Weight	200g
Installation method	Standard 35mm guide rail
Certification	CE
Interface parameters
Bus protocol	Modbus/TCP
Network cable	EtherCAT5 network cable
Transmission distance	100M (station to station distance)
Transmission rate	100Mbps
Bus interface	1*RJ45
Numeric parameter
Output signal type
Rated voltage	24 VDC(±25%)
Number of signal points	32
Signal type	PNP(high level active)
Load type	Resistive load, inductive load, lamp load
Drive capacity	Rated 200mA/single channel
Isolation method	Optocoupler isolation
Isolation and withstand voltage	500 V on the field side and digital side, with no isolation between channels
Channel indicator light	Green LED light
